380V 3 Phase 50Hz Evaporative Cooling Condenser For Cold Storage Refrigeration System

Certification
Good quality Screw Compressor Unit for sales
Good quality Screw Compressor Unit for sales
Incredibly impressed with this crew. They made my move easy and seamless. Very responsible, friendly, trustworthy.

—— Mexico Customer

Excellent service!!!These guys are incredible.

—— International customer

The team was awesome! They were friendly, efficient, and focused on getting the job done in a timely manner.

—— Uzbekistan customer

This company was great to work with. Easy to communicate Great prices EXTREMELY fast movers Very friendly, helpful too

—— Papua New Guinea customer

I'm Online Chat Now

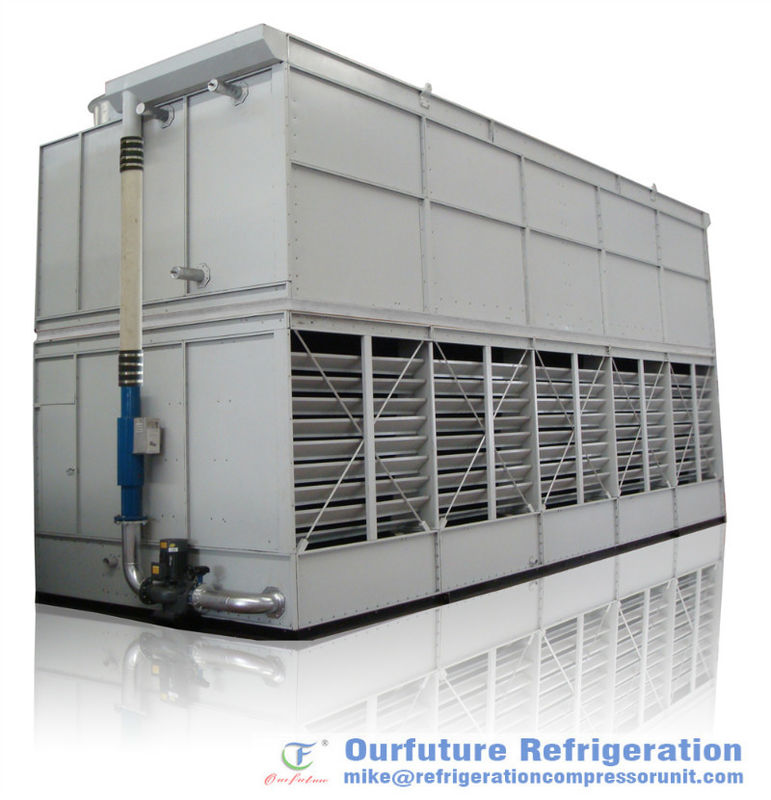

380V 3 Phase 50Hz Evaporative Cooling Condenser For Cold Storage Refrigeration System

China 380V 3 Phase 50Hz Evaporative Cooling Condenser For Cold Storage Refrigeration System supplier

Large Image :  380V 3 Phase 50Hz Evaporative Cooling Condenser For Cold Storage Refrigeration System

Product Details:

Place of Origin: Jinan, Shandong, China
Brand Name: Ourfuture
Certification: CE, 3C, ISO9001:2008, 18 patents
Model Number: OBBH4-80M

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD 10000 Per Unit
Packaging Details: Plywood case with steel pallet
Delivery Time: 20~30 days
Payment Terms: T/T, L/C, etc.
Supply Ability: 50 units per month
Detailed Product Description
Fan: Ziehl-Abegg, Ebmpapst, Etc. Refrigerant: R134a, R507a, R407c, R404a, R22, R744
Voltage: 380V/3Phase/50Hz, 220V/3Phase/60Hz Use: Cold Room, Refrigeration, Supermarket, Pharmacy, Meat Produce
Key Components: Danfoss, Siemens, Ebmpapst

Features

304L Stainless Steel Construction

  • Stainless steel coil
  • Stainless steel frame and covers
  • Fully welded stainless steel basin

Longer Product Life

  • Self passivating stainless steel provides a significantly longer product life than galvanized steel.
  • Fans and drives are designed for evaporative service.
  • EC fan models have stainless steel shafts and bearings.
  • Survives water quality upset conditions



Compact Design

  • High power density through optimized water distribution
  • 50% lower operating weight
  • Reduced refrigerant charge
  • Reduced expense for support structure

High Efficiency Fans

  • AC or EC motor technology
  • Low noise characteristics
  • Multiple fan motors provide increased redundancy

Inlet Louvers

  • Prevent water splash out
  • Water tight, sight tight
  • UV resistant
  • Corrosion resistant
Nominal Conditions Heat Exhaustion Coil Internal volume Axial Fan Circulating Pump Weight External Dimension
Fan Qty Model Power Air volume Qty Model Power Flow rate Freight Operation L L1 W H H1 H2
kw L kw m³/h kw m³/h kg kg mm mm mm mm mm mm
250 330.4 2 LQF-7.5 2×1.1 2×17000 1 65LP2-1.1 1.1 36 1930 3200 1920 280 1320 3540 1250 1870
300 377.6 2 LQF-7.5 2×1.1 2×17000 1 65LP2-1.1 1.1 36 2100 3460 2170 280 1320 3540 1250 1870
350 407.3 2 LQF-7.5 2×1.1 2×17000 1 65LP2-1.1 1.1 36 2250 3620 2170 280 1410 3540 1250 1870
400 472.0 2 LQF-8 2×1.5 2×22000 1 80LP2-1.1 1.1 53 2800 3940 2170 320 1320 3770 1250 2100
450 509.1 2 LQF-8 2×1.5 2×22000 1 80LP2-1.1 1.1 53 3000 4070 2170 320 1410 3770 1250 2100
500 583.1 2 LQF-10 2×2.2 2×32000 1 80LP2-1.1 1.1 53 3450 4350 2170 320 1590 3920 1400 2100
550 620.1 2 LQF-10 2×2.2 2×32000 1 80LP2-1.5 1.5 70 3800 4720 2170 320 1680 3920 1400 2100
600 755.3 4 LQF-7.5 4×1.1 4×17000 1 80LP2-1.5 1.5 70 4000 5570 2560 320 2170 3710 1420 1870
700 814.5 4 LQF-7.5 4×1.1 4×17000 1 80LP2-2.2 2.2 84 4490 7070 2740 320 2170 3710 1420 1870
800 944.1 4 LQF-8 4×1.5 4×22000 1 80LP2-2.2 2.2 84 4600 7390 2560 320 2170 3940 1420 2100
900 1018.1 4 LQF-8 4×1.5 4×22000 1 100LP4-2.2 2.2 100 5400 8090 2740 370 2170 3940 1420 2100
1000 1166.2 4 LQF-10 4×2.2 4×32000 1 100LP4-2.2 2.2 100 5670 9000 3100 370 2170 4190 1670 2100
1100 1240.3 4 LQF-10 4×2.2 4×32000 1 100LP4-3 3 120 6100 9880 3270 370 2170 4190 1670 2100
1200 1416.1 6 LQF-8 6×1.5 6×22000 1 100LP4-3 3 120 7560 10400 3800 370 2170 4290 1770 2100
1350 1527.2 6 LQF-8 6×1.5 6×22000 1 125LP4-3 3 150 7800 11280 4070 410 2170 4290 1770 2100
1500 1749.4 6 LQF-10 6×2.2 6×32000 1 125LP4-3 3 150 8100 12460 4610 410 2170 4290 1770 2100
1650 1860.4 6 LQF-10 6×2.2 6×32000 1 125LP4-4 4 180 8780 13300 4870 410 2170 4290 1770 2100
1800 2036.3 8 LQF-8 8×1.5 8×22000 1 125LP4-4 4 180 8950 14490 5400 410 2170 4360 1990 2100
2000 2332.5 8 LQF-10 8×2.2 8×32000 2 100LP4-2.2 2×2.2 2×100 11200 16340 6120 370 2170 4360 1990 2100
2200 2480.6 8 LQF-10 8×2.2 8×32000 2 100LP4-3 2×3 2×120 12000 17810 6460 370 2170 4360 1990 2100
2500 2915.6 10 LQF-10 10×2.2 10×32000 2 100LP4-3 2×3 2×120 13500 22190 7630 410 2170 4360 1990 2100
2750 3100.7 10 LQF-10 10×2.2 10×32000 2 125LP4-3 2×3 2×150 14500 24270 8060 410 2170 4360 1990 2100

380V 3 Phase 50Hz Evaporative Cooling Condenser For Cold Storage Refrigeration System380V 3 Phase 50Hz Evaporative Cooling Condenser For Cold Storage Refrigeration System
