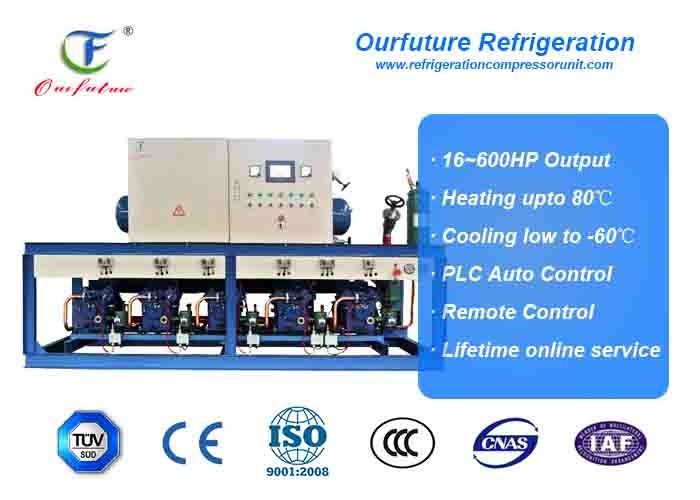

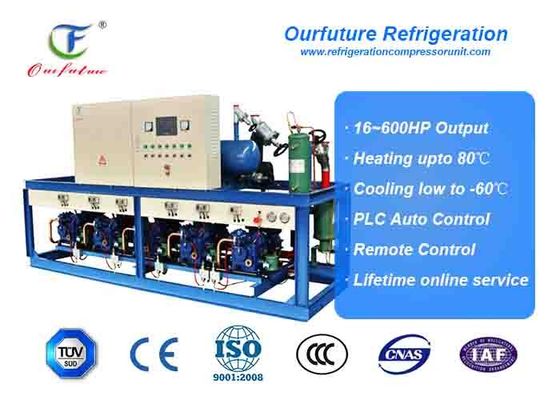

40hp*5 R404a GEA Bock Brand Cold Room Compressor Unit Seed Production
Product Details:
| Place of Origin: | China |
| Brand Name: | Ourfuture |
| Certification: | ISO 9001:2008, CE, CCC, QS |
| Model Number: | OBBL4-180L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | nigotiation |
| Packaging Details: | Plastic film + Plywood case |
| Delivery Time: | 20 days |
| Supply Ability: | 100 units per month |
|
Detail Information |
|||
| Compressor Brand: | , Carlyle, Danfoss, Copeland, Bock, Hanbell, Fusheng, Etc. | Cooling Type: | Air Cooled |
|---|---|---|---|
| Refrigerant: | R404a, R22 | Voltage: | 380V/3P/50Hz, 220V/1P/60Hz |
| Use: | Cold Room, Blast Freezer, Cold Chain Logistic, Pharacy, Refrigeration | Evaporating Temperature: | 10~-15℃， -15~-35℃， -30~-50℃ |
| Condensing Temperature: | 35℃ | Compressor Type: | Reciprocating Type |
| High Light: | refrigeration units for cold rooms,danfoss condensing unit |
||
Product Description
We produce our compressor racks with world famous components and?the world lastest technology. Each compressor rack is standardly equipped with phase loss protection, reverse phase order protection, over voltage/lack voltage protection, oil pressure protection, high/low pressure protection, motor over load protection, etc. This would enable our compressor racks to avoid frequently startup/off and provide a stable and reliable performance to end user.
Components such as compressor, reservoir, gas-liquid separator, oil separator, economizer, intake manifold, fluid supply manifold, electrical control equipment are all centralized, making sure every inch of the space is fully used.
The unit has a compact structure, the space saved during assembly can provide more space for commercial use, benefiting the end user with extra profit.
We have hight effciency oil separation system, when the unit is on, there's no need to use?lubracation, the standard oil temperature heater , oil temperature controller and oil level controller can make sure a perfect running.
We produce our compressor racks with world famous components and?the world lastest technology. Each compressor rack is standardly equipped with phase loss protection, reverse phase order protection, over voltage/lack voltage protection, oil pressure protection, high/low pressure protection, motor over load protection, etc. This would enable our compressor racks to avoid frequently startup/off and provide a stable and reliable performance to end user.
Each compressor rack is equipped with PLC controller, it can automatically decide how many compressors to be used according to the actual need, even the running time between all compressors, so that the electricity can be saved, also the compressors can have 30% more use life compared with single compressor condensing unit.
Our compressor racks are widely used in fruit fresh keeping, vegetable storage and production, seed storage, etc. We hope to work with more and more refrigeration contractor to provide the best refrigeratioin solution to the world.
| No. | Cold Room | Temperature (℃) |
Relative Humidity (%) |
Storage Product |
| 1 | Cooling room | 0 | — | Meat, egg, etc. |
| 2 | freeze room | -18~-23 | — |
Meat, poultry, rabbit, frozen egg, vegetable, etc. |
| -23~-30 | — | Fish, shrimp, etc. | ||
| 3 |
Chilled product cold storage |
0 | 85~90 | Cooled meat, poultry, etc. |
| -2~0 | 80~85 | Fresh egg | ||
| 0~+2 | 85~90 | Apple, pear, etc. | ||
| -1~+1 | 90~95 |
Chinese cabbiage, Garlic sprouts, onion, spinach, parsley, carrots, cabbage, celery, lettu
ce, etc. |
||
| +2~+4 | 85~90 |
Potatoes, oranges, persimmons, etc. |
||
| +7~+13 | 85~95 |
Bell pepper, beans, cucumber, tomato, pineapple, oranges, etc. |
||
| +11~+16 | 85~90 | Bananas | ||
| 4 |
Frozen product cold storage |
-15~-20 | 85~90 |
Frozen meat, poultry, rabbits and byproducts, frozen eggs, frozen vegetables, popsicles and other |
| -18~-23 | 90~95 | Frozen fish and shrimps | ||
| 5 | Ice storage | -4~-6 | — | Ice block |
