Fruit Fast Cooling R404a Cold Room Condensing Unit Screw 415V/3P/50Hz

China Fruit Fast Cooling R404a Cold Room Condensing Unit Screw 415V/3P/50Hz supplier
Fruit Fast Cooling R404a Cold Room Condensing Unit Screw 415V/3P/50Hz supplier Fruit Fast Cooling R404a Cold Room Condensing Unit Screw 415V/3P/50Hz supplier Fruit Fast Cooling R404a Cold Room Condensing Unit Screw 415V/3P/50Hz supplier

Large Image :  Fruit Fast Cooling R404a Cold Room Condensing Unit Screw 415V/3P/50Hz

Product Details:

Place of Origin: China
Brand Name: Bitzer
Certification: CE, CCC, QS, ISO 9001:2008,
Model Number: OBBL4-240M

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD 54K per unit
Packaging Details: Plastic film + Plywood case
Delivery Time: 20 days
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Compressor Brand: Bitzer, Carlyle, Danfoss, Copeland, Bock, Hanbell, Fusheng, Etc. Cooling Type: Air Cooled
Refrigerant: R404a, R22 Voltage: 415V/3P/50Hz
Use: Pre-cooling Evaporating Temperature: 10~-15℃
Condensing Temperature: 35℃ Compressor Type: Screw Type

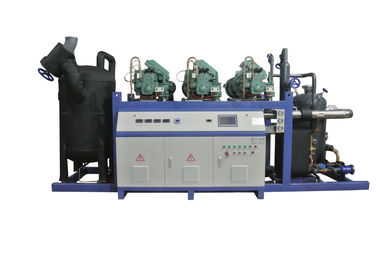

R404a Bitzer brand screw type parallel compressor racks for fruit fast cooling



The refrigeration system can use R404a, R507, R407C, R22.

  • Bitzer and Fusheng are the most common brand we use, we can also provide Bock, Carlyle, Hanbell, Copeland, etc.
  • We produce our compressor racks with world famous components and the world lastest technology. Each compressor rack is standardly equipped with phase loss protection, reverse phase order protection, over voltage/lack voltage protection, oil pressure protection, high/low pressure protection, motor over load protection, etc. This would enable our compressor racks to avoid frequently startup/off and provide a stable and reliable performance to end user.
  • The PLC controller is a standard provided component. It can automatically decide the compressor quantity to be used based on actual need of refrigerant capacity, average the running time between each compressor, save the power. All of these will guarantee an over 30% longer usage than single compressor condensing unit.
  • It has a unique low environment condensing pressure monitor system which guarantees a stable functioning when there is a low ambient temperature, lack of oil feeding or oil flow warnin
  • High efficiency gas liquid separator is used, with a unique pipeline design, it can effectively minimize the possibility of liquid strike.
  • The “Pressure Vessel Certificate” approved reservoir is provided as well as the safety relief valve.
  • Fault isolation device is served so that when a certain compressor breaks down, the rest of the unit can keep running appropriately, making sure that client has enough time for repair and replacement.

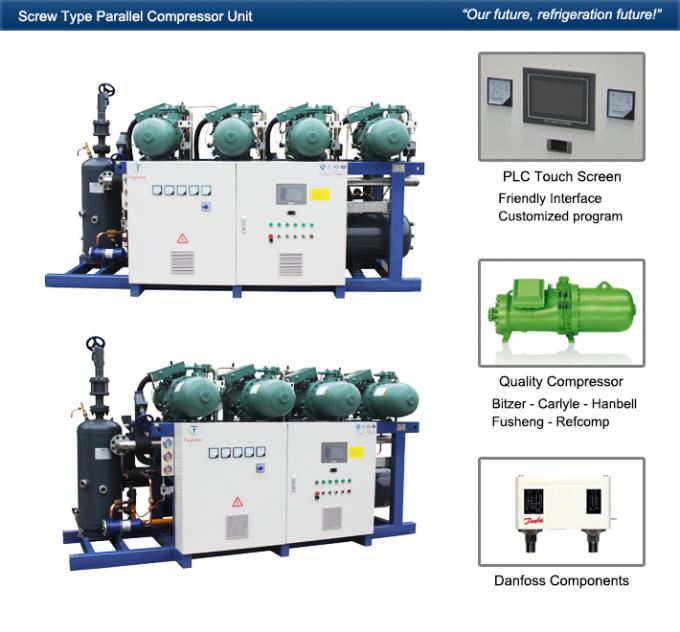

High Temperature Screw Type Parallel Compressor Unit Standard Configuration

1 Parallel unit components 4 Oil line components
  Strong metal frame   Oil outlet with filter barrel, with filter core
  Lifting ring   Oil line ball valve
  Cushion   Oil line solenoid valve
2 Reservoir components   Oil line sight glass
  28 bar safety valve   Electrical oil flow switch
  Inlet/outlet stop valve 5 Single compressor components
  Reservoir sight glass   Suction/discharge stop valve
  Pipeline sight glass   Discharge one direction stop valve
  Filter drier barrel, with filter core   Compressor shockwave cushion
  Stop valve for filter barrel outlet   Suction filter barrel, with filter core
3 Discharge components   1st degree spray cooling system
  External oil separator(with sight glass)   Oil sight glass
  oil heater
  Oil separator outlet stop valve
  Oil temperature controller
  Oil level controller

Fruit Fast Cooling R404a Cold Room Condensing Unit Screw 415V/3P/50HzFruit Fast Cooling R404a Cold Room Condensing Unit Screw 415V/3P/50Hz
