R404A / Co2 2 - Stage Screw Compressor Rack With Vfd For -65 Deg

R404A / Co2 2 - Stage Screw Compressor Rack With Vfd For -65 Deg

Product Details:

Place of Origin: China
Brand Name: Kobelco
Certification: CE, ISO
Model Number: R404a/CO2

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD 50000 ~ 400000 per unit
Packaging Details: pallet with plastic film
Delivery Time: 3~4 weeks
Payment Terms: T/T, L/C
Get Best Price Contact Now

Detail Information

Cooling Capacity: R717/CO2, R404a/CO2 Temperature: Within -65 Deg C
Gas: 40~500KW System Type: CO2 Brine System
High Light:

Refrigeration compressor rack

,

CO2 compressor rack

Product Description

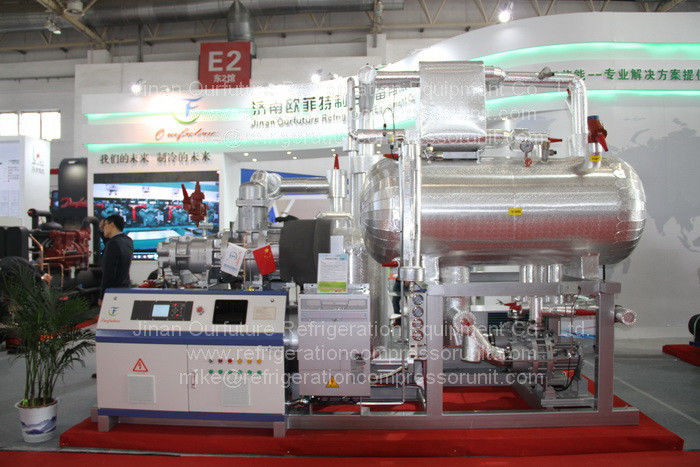

R404A / Co2 2 - Stage Screw Compressor Rack With Vfd For -65 Deg

 2-stage R717/CO2 -50 deg C VFD freezer room Kobelco screw compressor rack



Evaporating Temp. above -65 centigrade
Compressor Type Screw compressor
Compressor Qty 1
Compressor Stage 2-stage
Compressor Brand Kobelco
Available Refrigerant R717, R404a
Temperature Fast frozen
Character CO2 as secondary refrigerant
Cooling Capacity 40~500KW



The evaporator side uses CO2 as secondary refrigerant. It’s non-toxic, anti=flaming and has large latent heat of evaporation. Advanced user interface and control system with 10 inch PLC color touch screen display. With multi-touch function you can easily swap, enlarge just like using your ipad. It also support remote monitoring include data checking, modifying and downloading, it brings convenient to user.



Equipped with large capacity heat/cold exchanger, can super-cold liquid and also effectively prevent liquid returning to compressor. Pump station liquid supply, it can be used for long distance liquid supply, simplify the system while offering a clear and easy control.



Use environmental secondary refrigerant CO2, ODP=0, GWP=1Refrigerant: R404a, R717.Refrigeration capacity: 40KW~500KW.Application: Super low temperature cold storage, super low temperature brine system, fast frozen, etc.



Equipped with inverter, it settles the problems of requiring very large start-up power supply and start interval more than 10 mins. The Inverter type unit can be on/off at any time. It can reduce the impact to the power grid by reducing the installed power.



R404A / Co2 2 - Stage Screw Compressor Rack With Vfd For -65 Deg 0R404A / Co2 2 - Stage Screw Compressor Rack With Vfd For -65 Deg 1
