Smart Circuits Unit Cooler Evaporator , Cold Storage Evaporator For Meat Produce

China Smart Circuits Unit Cooler Evaporator , Cold Storage Evaporator For Meat Produce supplier

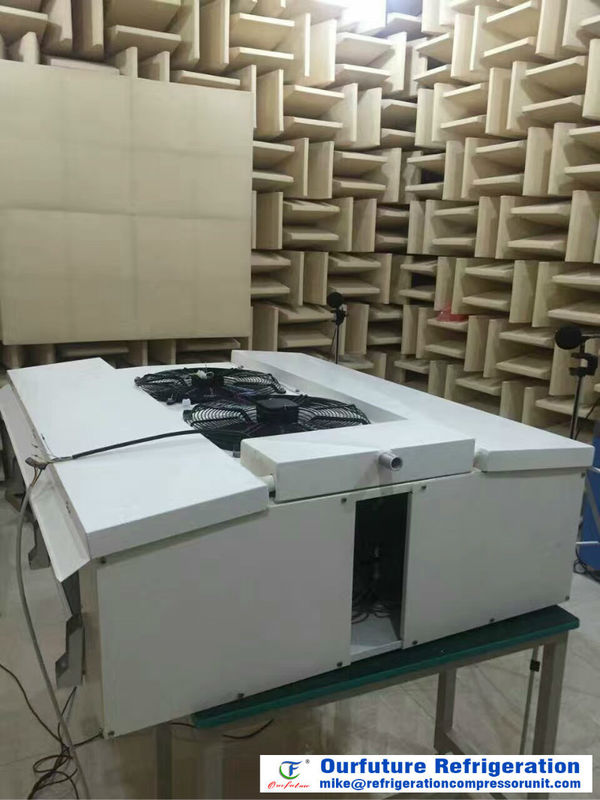

Large Image :  Smart Circuits Unit Cooler Evaporator , Cold Storage Evaporator For Meat Produce

Product Details:

Place of Origin: China
Brand Name: Ourfuture
Certification: ISO 9001:2008, CE, CCC, QS
Model Number: IVF163-1208E

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: nigotiation
Packaging Details: Plastic film + Plywood case
Delivery Time: 20 days
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Fan Brand: Ebmpapst, Ziehl;Abegg, Dunli, Etc. Voltage: 380/3Phase/50Hz, 460V/1Phase/60Hz
Use: Cold Room, Refrigeration, Supermarket, Pharmacy, Meat Produce Key Components: Danfoss, Siemens, Ebmpapst
Refrigerant: R404a, R507a, R407c, R22, CO2

Copper Tubes are accordance with JIS. C12T. Inner Groove Tubes (IGT) increases the internal coil surface, having a low oil film coefficient thus providing higher efficiency and capacity. Casing comes in high quality powder coated Aluminum, according to AA 1100 Standard. Centre plates built in to enhance air side performance and structural strength for models with 2 or more fans. Defrosting is by electrical sheathed stainless steel heater elements fitted with molded insulated connection and ultra low temperature silicone leads (rated to -80℃), to ensure effective defrosting and durability. Water resulting from defrosting is channeled to the drain pan with a centrally positioned outlet for positive draining from all points.



Coils are designed with the Latest Smart Circuitry. It allows maximum massflow rate of refrigerant to be evenly distributed throughout the evaporator, maximizing coil efficiency thus providing higher efficiency and capacity with a smaller physical unit cooler dimension.



Fan Motors used in all the models are high quality German motors, fitted with thermistor motor protection and conform to DIN 40050 safety standards. Fan motors are of the highest quality offered in the industry ensuring long life and durability for both high and low temperature application. Capacity Ratings are thermally guaranteed by Eden and tested in accordance to ASHRAE dry box standards. Quality Assurance for all Eden products are designed, manufactured and tested in our factories that are ISO9001 certified. One Year Warranty for all Eden Heat Exchanger products. Terms and conditions apply.



Model Diameter of fan No. of fans Capacity R404E SC3 Capacity R404E SC5 Exchange surface Air throw
    kW kW m
IVF140-1204E 400 1 1.6 1.3 10 11
IVF140-1206E 1 2.5 1.9 16 11
IVF240-1204E 2 3.2 2.6 21 12
IVF240-1206E 2 5.1 4.2 31 12
IVF340-1204E 3 5.5 4.2 31 13
IVF340-1206E 3 7.6 5.9 47 13
IVF440-1204E 4 7.0 5.2 42 14
IVF440-1206E 4 9.8 7.4 62 14
IVF145-1206E 450 1 5.1 4.0 28 16
IVF145-1208E 1 6.1 4.9 37 15
IVF245-1206E 2 10.4 8.1 56 18
IVF245-1208E 2 12.3 9.9 75 17
IVF345-1206E 3 15.6 12.2 84 19
IVF345-1208E 3 19.2 15.1 112 18
IVF445-1206E 4 20.2 16.0 112 21
IVF445-1208E 4 24.7 19.8 150 20
IVF150-1206E 500 1 6.1 4.6 33 19
IVF150-1208E 1 6.9 5.6 44 18
IVF250-1206E 2 12.1 9.3 65 21
IVF250-1208E 2 15.1 11.8 87 20
IVF350-1206E 3 18.6 14.2 98 22
IVF350-1208E 3 23.1 17.9 131 21
IVF450-1206E 4 24.9 19.3 131 23
IVF450-1208E 4 30.7 24.0 174 22
IVF163-1206E 630 1 13.0 10.4 75 33
IVF163-1208E 1 17.9 14.1 100 32
IVF163-1210E 1 21.0 16.2 125 31
IVF263-1206E 2 28.9 22.7 150 35
IVF263-1208E 2 36.1 28.5 199 34
IVF263-1210E 2 41.8 33.3 249 33
IVF363-1206E 3 43.4 34.2 224 36
IVF363-1208E 3 54.0 41.8 299 35
IVF363-1210E 3 63.8 49.8 374 34
IVF463-1206E 4 56.8 43.6 299 37
IVF463-1208E 4 71.6 55.3 399 36
IVF463-1210E 4 84.3 65.4 499 35
IVF180-1206E 800 1 17.9 14.6 100 35
IVF180-1208E 1 21.0 17.8 133 34
IVF280-1206E 2 34.2 28.8 199 38
IVF280-1208E 2 42.0 35.8 266 37
IVF380-1206E 3 53.9 44.3 299 40
IVF380-1208E 3 66.2 55.2 399 39
