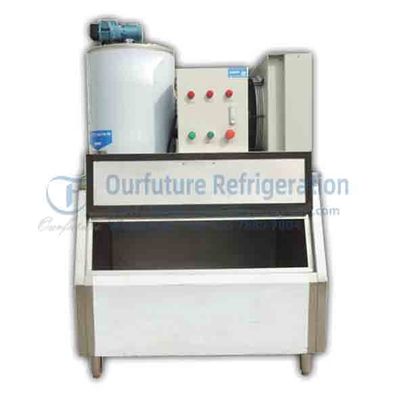

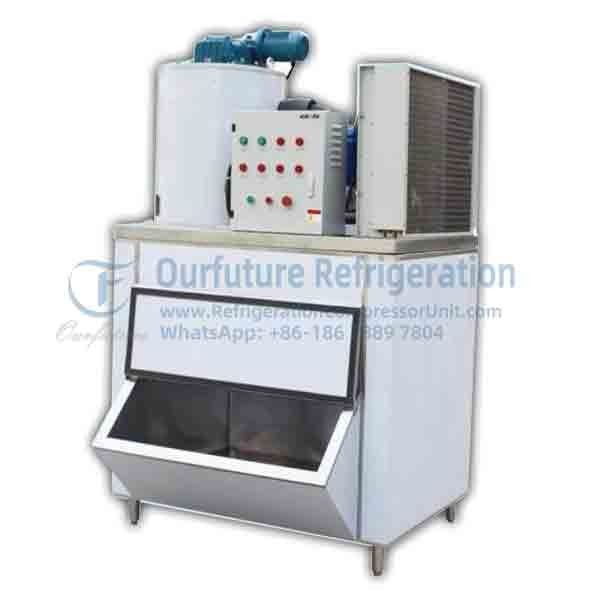

350 Kgs Commercial Fresh Water Flake Ice Machine With Germany Compressor
Product Details:
Place of Origin: | Jinan, China |
Brand Name: | Ourfuture |
Certification: | 3C, CE, ISO9001 |
Model Number: | OMIF0.35T-R4A |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | 1000 USD |
Packaging Details: | Plywood case |
Delivery Time: | 3~4 weeks |
Payment Terms: | T/T |
Supply Ability: | 500 Units per month |
Detail Information |
|||
Use: | Flake Ice Production | Production Ability: | 350kgs / 24 Hrs |
---|---|---|---|
Cooling Cap: | 2 KW | Total Power: | 1.95 KW |
Compressor Input: | 1.59 KW | Reductor Power: | 0.25 KW |
Condenser Type: | Air Cooling Condenser | Water Inlet Diameter: | 1/2 Inches |
Weight: | 190 Kgs | Machine Dimension: | 950*650*700mm |
Dimension With Ice Room: | 950*800*1530mm | ||
Highlight: | Commercial Freshwater Flake Ice Machine,350kgs/24hrs Flake Ice Machine |
Product Description
350 Kgs Commercial Fresh Water Flake Ice Machine With Germany Compressor And High Effeciency Air Cooling Condenser
Ourfuture flake ice machine aims at provide the best ice solution for your business.
Our flake ice machine model OMIF0.35T-R4A is designed to produce flake ice for 350kgs (0.35 ton) per 24 hours.
Designed working ambient temperature is 25 degC, water incoming temperature 20 degC.
The refrigeration system has evaporating temperature of -20degC and condensing temperature of 40degC.
Standard power supply is 380~420V/ 3 phase/50Hz.
Flake ice thickness 1.6mm ~2.3mm
Refrigerant gas R404a or others as per customer's requirement.
Daily production ability | 0.35 ton (350 KGS) per 24 hours |
Cooling capacity | 2 KW |
Total power | 1.95 KW |
Compressor input | 1.59 KW |
Reductor power | 0.25 KW |
Condenser type | Aluminum fin & copper tube air cooling condenser |
Water inlet/drain pipe diameter | 1/2 inches |
Weight | 190 KGS |
Machine dimension | 950*650*700 mm |
Dimension with ice bin | 950*800*1530 mm |
