R404a Refrigeration Compressor Unit , Reciprocating Walk In Cooler Condensing Unit
Product Details:
Place of Origin: | China |
Brand Name: | Ourfuture |
Certification: | ISO 9001:2008, CE, CCC, QS |
Model Number: | OBH5M-A |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | nigotiation |
Packaging Details: | Plastic film + Plywood case |
Delivery Time: | 20 days |
Supply Ability: | 100 units per month |
Detail Information |
|||
Cooling Type: | Air Cooled | Refrigerant: | R404a, R22 |
---|---|---|---|
High Light: | refrigeration units for cold rooms,refrigeration condenser unit |
Product Description

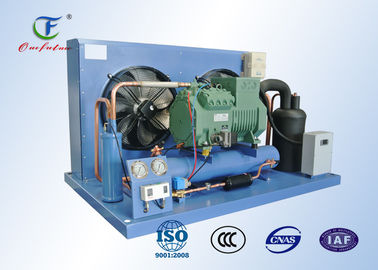

R404a Refrigeration Compressor Unit , Reciprocating Walk In Cooler Condensing Unit
Piston type parallel compressor unit standard configuration |
||
1.Parallel compressor unit assembly | 6. Subcooler assembly (applies for single compressor double stage unit) | |
Sturdy metal chassis | Subcooler | |
Lifting ring | Subcooling expansion valve, subcooling solenoid valve, subcooling liquid sight glass, subcooling off-valve. | |
Cushion | ||
7. Gas-liquid separator | ||
2.Reservoir assembly | ||
Reservoir has 28 bar safety valve | 8. Compressor electronic controller and protection assembly. | |
Reservoir inlet/outlet off-valve | Compressor high/low pressure controller. | |
Reservoir sight glass | Electronic overcurrent protector. | |
Pipeline liquid sight glass | Low pressure sensor | |
Reservoir out filter barrel drier, contains filter | Independent circuit breakers and thermal protector. | |
Filter drier barrel oulet has shut-off valve. | PLC controller and color touch screen. | |
3.Exhaust gas assembly | 9. Fluid supply manifold and return manifold assembly. | |
Oil separator | Fluid supply manifold and return manifold quantity in accordance with product catalog | |
Oil separator outlet backstop shut-off valve | Manifold adopts hard straight pipe. | |
4. Oil line assembly | 10. Other | |
Oil reservoir (with oil sight glass) | Compressor pressure gauge | |
Oil reservoir inlet/outlet off valve | Repair valves are mounted on each manifold | |
Oil line backstop valve | Insulation materials for suction, economizer and cooling tube | |
Oil outlet filter | Compressor unit suction off-valve | |
Oil ball valve | ||
Oil level controller | 11. Optional configures | |
Refrigerant R22 or R404a | ||
5.Single compressor assembly. | Reservoir can be vertical or horizontal | |
Suction and discharge off-valve | Fluid supply manifold shunt and return manifold shunt | |
Compressor cushion | Cooling type: air cooled, water cooled, evaporative cooled. | |
Suction filter barrel, contains filter | Other brand compressor and configurations | |
Oil sight glass | ||
Oil pressure controller (oil pump lubrication) | 12. Components that can be added | |
Crankcase heater | Compressor exhaust muffler | |
Low temperature single stage compressor cylinder fan. | High pressure sensor | |
Low temperature single stage compressor liquid spray cooling | Heat recovery device. | |
Hot gas defrost function | ||
Frozen oil |

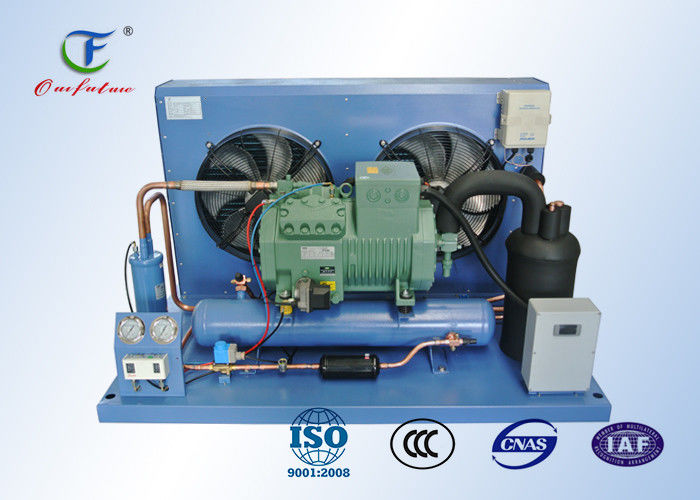

Air cooled piston type condensing unit
General Features
Compact and durable
Wide range of applications
Green refrigerant R404a is used.
High efficiency and low noise external rotor fan motor is used.
High efficiency coper tube aluminum fin conderser.
PTC sensor is used to monitor motor temperature.
Polyester oil pre-filled.
New series of air cooled piston type condensing unit power range
Single stage condensing unit has been extended from 2.9 KW to 135 KW (variety of options)
Double stage condensing unit has been extended from 1.8 KW to 52.6 KW (variety of options)
Standard condensing unit configuration
Semi hermatic compressor, air cooled condenser, reservoir(vertical reservoir for under 5HP, horizontal type for above 6HP), crankcase heater, dashboard, filter, sight glass, frozen oil, oil pressure differential controller(except for octagonal unit ), double stage unit has intercooler.
Optional configurations
R134a, R507, R22, etc,
Oil separator,
Check valve for exhaust pipe,
Gas-liquid separator,
CIC spray cooling system,
Energy regulation device,
Exhaust temperature protector,
Extra large reservoir,
Condenser fan speed controller,
Code description
O | B | H | 2 | M- | A |
Ourfuture Refrigeration | Condensing unit type: B-Single stage semi hermatic SB-Double stage semi hermatic |
Compressor type: H-Piston type L-Screw type |
Compressor nominal power (HP) |
Evaporating temp. code: M(Medium & high temp.): 0~-10ºC L(Medium temp.):-10~-30ºC J(Low temp.): -30~-65ºC |
Condenser type: W-Water cooled A-Air cooled |
