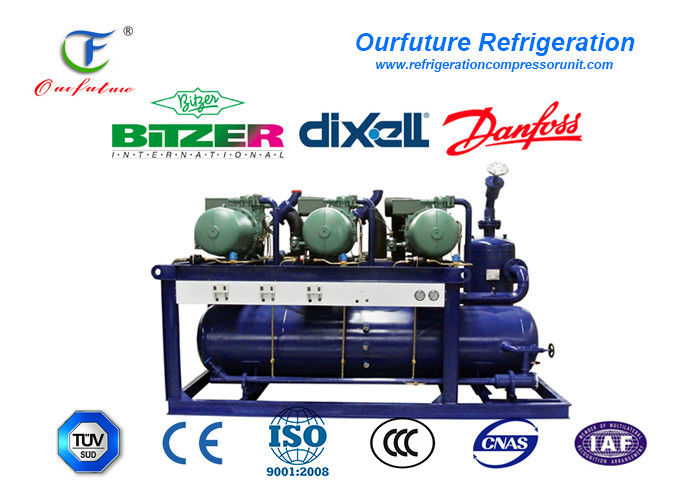

Air Cooled Condensing Unit Suit PLC Safety Auto Control For Blast Freezer
Product Details:
Place of Origin: | China |
Certification: | ISO 9001:2008, CE, CCC, QS |
Model Number: | OBBL2-180L |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | nigotiation |
Packaging Details: | Plastic film + Plywood case |
Delivery Time: | 20 days |
Supply Ability: | 100 units per month |
Detail Information |
|||
Compressor Brand: | , Carlyle, Danfoss, Copeland, Bock, Hanbell, Fusheng, Etc. | Cooling Type: | Water Cooled |
---|---|---|---|
Refrigerant: | R404a, R22 | Voltage: | 380V/3P/50Hz, 220V/1P/60Hz |
Use: | Cold Room, Blast Freezer, Cold Chain Logistic, Pharacy, Refrigeration | Evaporating Temperature: | 10~-15℃, -15~-35℃, -30~-50℃ |
Condensing Temperature: | 35℃ | Compressor Type: | Screw Type |
Highlight: | air cooled condensing units,walk-in freezer condensing unit |
Product Description
Water Cooled Copeland Condensing Unit , Freezer Condensing Unit
Wide Range of Options
Compressor Unit |
Refrigeration Capacity |
Evaporating temperature |
Piston type single-stage parallel unit |
20HP~350HP |
7.5℃~-45℃ |
Piston type Two-stage parallel unit |
16HP~180HP |
-25℃~-65℃ |
Screw type single stage parallel unit |
80HP~600HP |
5℃~-45℃ |
Screw type double-stage parallel unit |
100HP~600HP |
-30℃~-65℃ |
Compact & nimble
1. Components such as compressor, reservoir, gas-liquid separator, oil separator, economizer, intake manifold, fluid supply manifold, electrical control equipment are all centralized, making sure every inch of the space is fully used.
2. The unit has a compact structure, the space saved during assembly can provide more space for commercial use, benefiting the end user with extra profit.
Easy operation & convenience
1. With PLC safety auto control, client can program with touch screen, the graphical control interface can intently show the running status, recording data, parameter settings and false alarming, easy for operation.
2. The reserved remote communication interface can help customer to monitor remotely.
3. hanks to the print output interface, customer can print the running history data of the unit and the system.
Feature
1. screw compressor
2. With full range, air cooled & water cooled.
3. Multi stage energy-controlling system
4. All the accessories are world famous brand, which with reliable quality.
5. Testing condition: ambient temperature 35oc, condensing temperature 50oc
6. Wide application, suitable for different refrigerant.
7. Optional configuration is acceptable.
8. CE approved.
