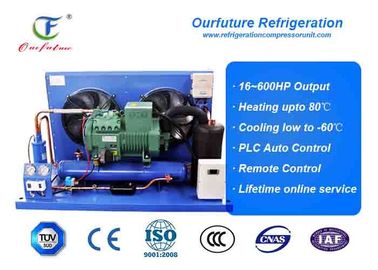

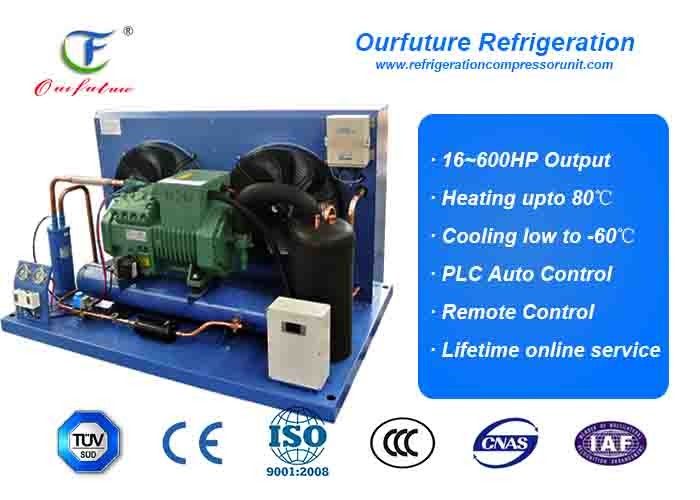

Air Cooled Piston Condensing Commercial Refrigeration Units For Carrot Freeze Room
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001:2008, CE, CCC, QS |
| Model Number: | OBH40M-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | nigotiation |
| Packaging Details: | Plastic film + Plywood case |
| Delivery Time: | 20 days |
| Supply Ability: | 100 units per month |
|
Detail Information |
|||
| Compressor Brand: | , Carlyle, Danfoss, Copeland, Bock, Hanbell, Fusheng, Etc. | Cooling Type: | Air Cooled |
|---|---|---|---|
| Refrigerant: | R404a, R22 | Voltage: | 380V/3P/50Hz, 220V/1P/60Hz |
| Use: | Cold Room, Blast Freezer, Cold Chain Logistic, Pharacy, Refrigeration | Evaporating Temperature: | 10~-15℃， -15~-35℃， -30~-50℃ |
| Condensing Temperature: | 35℃ | Compressor Type: | Piston Type |
| High Light: | refrigeration units for cold rooms,refrigeration condenser unit |
||
Product Description
The units are equipped with world famous brand high quality compressor and components, following the latest design, the perfect combination provides a safe and reliable system.
We produce our compressor racks with world famous components and?the world lastest technology. Each compressor rack is standardly equipped with phase loss protection, reverse phase order protection, over voltage/lack voltage protection, oil pressure protection, high/low pressure protection, motor over load protection, etc. This would enable our compressor racks to avoid frequently startup/off and provide a stable and reliable performance to end user.
High efficiency oil separating system. When power is on, there is no need to add lubricating oil, the standard provided oil heater, oil temperature controller and oil level switch, etc. can protect the function.
The PLC controller is a standard provided component. It can automatically decide the compressor quantity to be used based on actual need of refrigerant capacity, average the running time between each compressor, save the power. All of these will guarantee an over 30% longer usage than single compressor condensing unit.
It has a unique low environment condensing pressure monitor system which guarantees a stable functioning when there is a low ambient temperature, lack of oil feeding or oil flow warnin
High efficiency gas liquid separator is used, with a unique pipeline design, it can effectively minimize the possibility of liquid strike.
The “Pressure Vessel Certificate” approved reservoir is provided as well as the safety relief valve.
Fault isolation device is served so that when a certain compressor breaks down, the rest of the unit can keep running appropriately, making sure that client has enough time for repair and replacement.
| No. | Cold Room | Temperature (℃) |
Relative Humidity (%) |
Storage Product |
| 1 | Cooling room | 0 | — | Meat, egg, etc. |
| 2 | freeze room | -18~-23 | — |
Meat, poultry, rabbit, frozen egg, vegetable, etc. |
| -23~-30 | — | Fish, shrimp, etc. | ||
| 3 | Chilled product cold storage | 0 | 85~90 | Cooled meat, poultry, etc. |
| -2~0 | 80~85 | Fresh egg | ||
| 0~+2 | 85~90 | Apple, pear, etc. | ||
| -1~+1 | 90~95 |
Chinese cabbiage, Garlic sprouts, onion, spinach, parsley, carrots, cabbage, celery, lettuce, etc. |
||
| +2~+4 | 85~90 |
Potatoes, oranges, persimmons, etc. |
||
| +7~+13 | 85~95 |
Bell pepper, beans, cucumber, tomato, pineapple, oranges, etc. |
||
| +11~+16 | 85~90 | Bananas | ||
| 4 | Frozen product cold storage | -15~-20 | 85~90 |
Frozen meat, poultry, rabbits and byproducts, frozen eggs, frozen vegetables, popsicles and other |
| -18~-23 | 90~95 | Frozen fish and shrimps | ||
| 5 | Ice storage | -4~-6 | — | Ice block |
