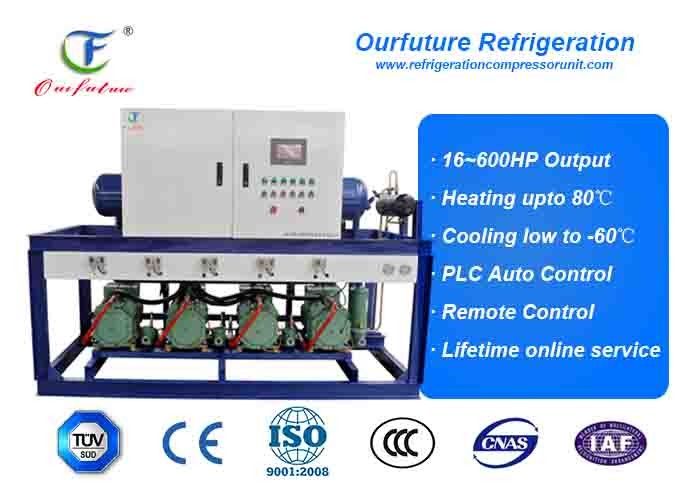

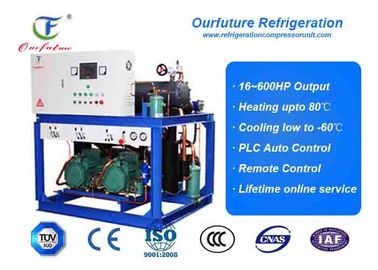

Reciprocating Parallel Compressor Racks For Seed Freezer 10HP*4 R404a
Product Details:
Place of Origin: | China |
Certification: | ISO 9001:2008, CE, CCC, QS |
Model Number: | OBBH4-80M |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | nigotiation |
Packaging Details: | Plastic film + Plywood case |
Delivery Time: | 20 days |
Supply Ability: | 100 units per month |
Detail Information |
|||
Voltage: | 380V/3P/50Hz, 420V/3P/50Hz | Use: | Cold Room, Blast Freezer, Cold Chain Logistic, Pharacy, Refrigeration |
---|---|---|---|
Compressor Brand: | , Carlyle, Danfoss, Copeland, Bock, Hanbell, Fusheng, Etc. | Evaporating Temperature: | 10~-15℃, -15~-35℃, -30~-50℃ |
Cooling Type: | Air Cooled | Condensing Temperature: | 35℃ |
Refrigerant: | R404a, R22 | Compressor Type: | Piston Type |
High Light: | refrigeration units for cold rooms,danfoss condensing unit |
Product Description
We produce our compressor racks with world famous components and the world lastest technology. Each compressor rack is standardly equipped with phase loss protection, reverse phase order protection, over voltage/lack voltage protection, oil pressure protection, high/low pressure protection, motor over load protection, etc. This would enable our compressor racks to avoid frequently startup/off and provide a stable and reliable performance to end user.
We have hight effciency oil separation system, when the unit is on, there's no need to use lubracation, the standard oil temperature heater , oil temperature controller and oil level controller can make sure a perfect running.
Each compressor rack is equipped with PLC controller, it can automatically decide how many compressors to be used according to the actual need, even the running time between all compressors, so that the electricity can be saved, also the compressors can have 30% more use life compared with single compressor condensing unit.
Our compressor racks are widely used in fruit fresh keeping, vegetable storage and production, seed storage, etc. We hope to work with more and more refrigeration contractor to provide the best refrigeratioin solution to the world.
Medium & high temperature piston type parallel unit
Refrigeration amount and power are set based on condensing temperature of 35℃, used for evaporation
condensation.
(OBBH) Rack model |
2-20M |
2-30M |
2-40M |
2-50M |
2-60M |
2-80M |
2-100M |
||||
Evaporating temperature (℃) |
10℃~-15℃ |
||||||||||
Refrigerant |
R404A |
||||||||||
Voltage |
380V/50HZ |
||||||||||
Compressor |
Type |
Semi hermetic piston type |
|||||||||
Model |
4VES10 |
4PES15 |
4NES20 |
4HE25 |
4GE30 |
6GE40 |
6FE50 |
||||
Qty |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
||||
Refrigerating capacity & power |
Te. 0℃ |
Qo(W) |
62800 |
87000 |
103000 |
133600 |
153400 |
222800 |
271200 |
||
Pe (KW) |
15.14 |
21.18 |
24.92 |
33.00 |
38.34 |
56.8 |
70.6 |
||||
Te. -5℃ |
Qo(W) |
51600 |
71400 |
84800 |
111000 |
127400 |
185400 |
226000 |
|||
Pe (KW) |
14.34 |
20.02 |
23.66 |
31.32 |
36.32 |
54.00 |
67.20 |
||||
Te. -10℃ |
Qo(W) |
42000 |
58000 |
69200 |
91400 |
105000 |
153000 |
186600 |
|||
Pe (KW) |
13.36 |
18.58 |
22.08 |
29.32 |
33.94 |
50.6 |
63.00 |
||||
Connector |
Air inlet (mm) |
45 |
45 |
57 |
76 |
76 |
76 |
76 |
|||
Liquid outlet (mm) |
19 |
22 |
22 |
28 |
35 |
42 |
42 |
||||
Air outlet (mm) |
28 |
35 |
35 |
42 |
42 |
54 |
76 |
||||
Liquid inlet (mm) |
22 |
22 |
28 |
28 |
35 |
42 |
42 |
||||
Overall dimension |
L(mm) |
1442 |
1442 |
1442 |
1550 |
1550 |
1550 |
1600 |
|||
W(mm) |
1100 |
1100 |
1100 |
1100 |
1100 |
1100 |
1100 |
||||
H(mm) |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
(OBBH) Rack model |
3-30M |
3-45M |
3-60M |
3-75M |
3-90M |
3-120M |
3-150M |
||||||
Evaporating temperature (℃) |
10℃~-15℃ |
||||||||||||
Refrigerant |
R404A |
||||||||||||
Voltage |
380V/50HZ |
||||||||||||
Compressor |
Type |
Semi hermetic piston type |
|||||||||||
Model |
4VES10 |
4PES15 |
4NES20 |
4HE25 |
4GE30 |
6GE40 |
6FE50 |
||||||
Qty |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
||||||
Refrigerating capacity & power |
Te. 0℃ |
Qo(W) |
94200 |
130500 |
154500 |
200400 |
230100 |
334200 |
406800 |
||||
Pe (KW) |
22.71 |
31.77 |
37.38 |
49.50 |
57.51 |
85.20 |
105.9 |
||||||
Te. -5℃ |
Qo(W) |
77400 |
107100 |
127200 |
166500 |
191100 |
278100 |
339000 |
|||||
Pe (KW) |
21.51 |
30.03 |
35.49 |
46.98 |
54.48 |
81.00 |
100.8 |
||||||
Te. -10℃ |
Qo(W) |
63000 |
87000 |
103800 |
137100 |
157500 |
229500 |
279900 |
|||||
Pe (KW) |
20.04 |
27.87 |
33.12 |
43.98 |
50.91 |
75.9 |
94.5 |
||||||
Connector |
Air inlet (mm) |
57 |
57 |
76 |
76 |
89 |
89 |
108 |
|||||
Liquid outlet (mm) |
22 |
28 |
28 |
35 |
42 |
54 |
54 |
||||||
Air outlet (mm) |
35 |
45 |
54 |
54 |
76 |
76 |
76 |
||||||
Liquid inlet (mm) |
28 |
28 |
35 |
42 |
42 |
54 |
54 |
||||||
Overall dimension |
L(mm) |
1972 |
1972 |
1972 |
2150 |
2150 |
2150 |
2150 |
|||||
W(mm) |
1100 |
1100 |
1100 |
1150 |
1150 |
1150 |
1150 |
||||||
H(mm) |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
Medium & high temperature piston type parallel unit
Refrigeration amount and power are set based on condensing temperature of 35℃, used for evaporation
condensation.
(OBBH) Rack model |
4-40M |
4-60M |
4-80M |
4-100M |
4-120M |
4-160M |
4-200M |
||||
Evaporating temperature (℃) |
10℃~-15℃ |
||||||||||
Refrigerant |
R404A |
||||||||||
Voltage |
380V/50HZ |
||||||||||
Compressor |
Type |
Semi hermetic piston type |
|||||||||
Model |
4VES10 |
4PES15 |
4NES20 |
4HE25 |
4GE30 |
6GE40 |
6FE50 |
||||
Qty |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
||||
Refrigerating capacity & power |
Te. 0℃ |
Qo(W) |
125600 |
174000 |
206000 |
267200 |
306800 |
445600 |
542400 |
||
Pe (KW) |
30.28 |
42.36 |
49.84 |
66 |
76.68 |
113.6 |
141.2 |
||||
Te. -5℃ |
Qo(W) |
103200 |
142800 |
169600 |
222000 |
254800 |
370800 |
452000 |
|||
Pe (KW) |
28.68 |
40.04 |
47.32 |
62.64 |
72.64 |
108 |
134.4 |
||||
Te. -10℃ |
Qo(W) |
84000 |
116000 |
138400 |
182800 |
210000 |
306000 |
373200 |
|||
Pe (KW) |
26.72 |
37.16 |
44.16 |
58.64 |
67.88 |
101.2 |
126 |
||||
Connector |
Air inlet (mm) |
57 |
76 |
76 |
108 |
108 |
108 |
125 |
|||
Liquid outlet (mm) |
28 |
35 |
35 |
45 |
45 |
45 |
57 |
||||
Air outlet (mm) |
45 |
57 |
76 |
76 |
76 |
76 |
76 |
||||
Liquid inlet (mm) |
28 |
35 |
45 |
45 |
57 |
57 |
76 |
||||
Overall dimension |
L(mm) |
2502 |
2502 |
2502 |
2850 |
2850 |
2850 |
2850 |
|||
W(mm) |
1100 |
1100 |
1100 |
1150 |
1150 |
1150 |
1150 |
||||
H(mm) |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
(OBBH) Rack model |
5-50M |
5-75M |
5-100M |
5-125M |
5-150M |
5-200M |
5-250M |
|||||
Evaporating temperature (℃) |
10℃~-15℃ |
|||||||||||
Refrigerant |
R404A |
|||||||||||
Voltage |
380V/50HZ |
|||||||||||
Compressor |
Type |
Semi hermetic piston type |
||||||||||
Model |
4VES10 |
4PES15 |
4NES20 |
4HE25 |
4GE30 |
6GE40 |
6FE50 |
|||||
Qty |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
|||||
Refrigerating capacity & power |
Te. 0℃ |
Qo(W) |
157000 |
217500 |
257500 |
334000 |
383500 |
557000 |
678000 |
|||
Pe (KW) |
37.85 |
52.59 |
62.3 |
82.5 |
95.85 |
142 |
176.5 |
|||||
Te. -5℃ |
Qo(W) |
129000 |
178500 |
212000 |
277500 |
318500 |
463500 |
565000 |
||||
Pe (KW) |
35.85 |
50.05 |
59.15 |
78.3 |
90.8 |
135 |
168 |
|||||
Te. -10℃ |
Qo(W) |
105000 |
145000 |
173000 |
228500 |
262500 |
382500 |
466500 |
||||
Pe (KW) |
33.4 |
46.45 |
55.2 |
73.3 |
84.85 |
126.5 |
157.5 |
|||||
Connector |
Air inlet (mm) |
76 |
76 |
89 |
108 |
108 |
125 |
2*108 |
||||
Liquid outlet (mm) |
28 |
35 |
45 |
45 |
45 |
57 |
76 |
|||||
Air outlet (mm) |
57 |
57 |
76 |
76 |
76 |
76 |
89 |
|||||
Liquid inlet (mm) |
35 |
45 |
57 |
57 |
57 |
76 |
76 |
|||||
Overall dimension |
L(mm) |
3102 |
3102 |
3102 |
3450 |
3450 |
3450 |
3450 |
||||
W(mm) |
1100 |
1100 |
1100 |
1150 |
1150 |
1150 |
1150 |
|||||
H(mm) |
1800 |
1800 |
1800 |
1800 |
180 |
1800 |
1800 |
Medium & high temperature piston type parallel unit
Refrigeration amount and power are set based on condensing temperature of 35℃, used for evaporation
condensation.
(OBBH) Rack model |
6-60M |
6-90M |
6-120M |
6-150M |
6-180M |
6-240M |
6-300M |
||||||||
Evaporating temperature (℃) |
10℃~-15℃ |
||||||||||||||
Refrigerant |
R404A |
||||||||||||||
Voltage |
380V/ 50HZ |
||||||||||||||
Compressor |
Type |
Semi hermetic piston type |
|||||||||||||
Model |
4VES10 |
4PES15 |
4NES20 |
4HE25 |
4GE30 |
6GE40 |
6FE50 |
||||||||
Qty |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
||||||||
Refrigerating capacity & power |
Te. 0℃ |
Qo(W) |
188400 |
261000 |
309000 |
400800 |
460200 |
668400 |
813600 |
||||||
Pe (KW) |
45.42 |
63.54 |
74.76 |
99.00 |
115.02 |
170.4 |
211.8 |
||||||||
Te. -5℃ |
Qo(W) |
154800 |
214200 |
254400 |
333000 |
382200 |
556200 |
678000 |
|||||||
Pe (KW) |
43.02 |
60.06 |
70.98 |
93.96 |
108.96 |
162 |
201.6 |
||||||||
Te. -10℃ |
Qo(W) |
126000 |
174000 |
207600 |
274200 |
315000 |
459000 |
559800 |
|||||||
Pe (KW) |
40.08 |
55.74 |
66.24 |
87.96 |
101.82 |
151.8 |
189 |
||||||||
Connector |
Air inlet (mm) |
76 |
76 |
76 |
89 |
108 |
2*108 |
2*125 |
|||||||
Liquid outlet (mm) |
35 |
45 |
45 |
45 |
57 |
76 |
76 |
||||||||
Air outlet (mm) |
57 |
76 |
76 |
76 |
89 |
89 |
108 |
||||||||
Liquid inlet (mm) |
45 |
57 |
57 |
57 |
76 |
76 |
76 |
||||||||
Overall dimension |
L(mm) |
3632 |
3632 |
3632 |
4050 |
4050 |
4050 |
4050 |
|||||||
W(mm) |
1100 |
1100 |
1100 |
1150 |
1150 |
1150 |
1150 |
||||||||
H(mm) |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
