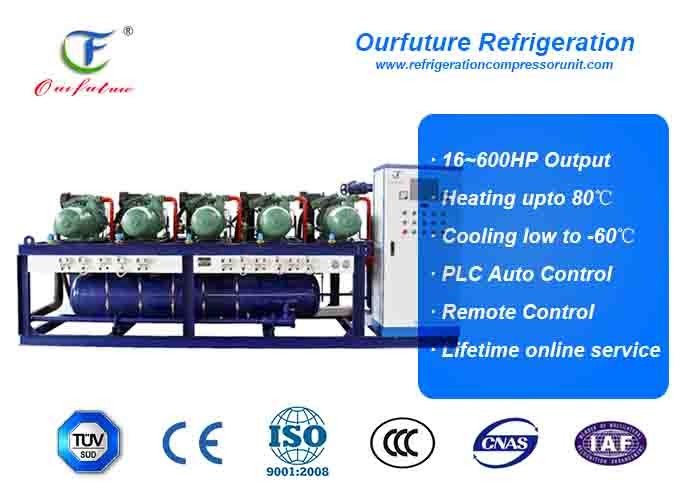

CSH Screw Parallel Cold Room Compressor Unit Racks For Fruit Cold Room
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001:2008, CE, CCC, QS |
| Model Number: | OBBL2-180L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | nigotiation |
| Packaging Details: | Plastic film + Plywood case |
| Delivery Time: | 20 days |
| Supply Ability: | 100 units per month |
|
Detail Information |
|||
| Compressor Brand: | , Carlyle, Danfoss, Copeland, Bock, Hanbell, Fusheng, Etc. | Cooling Type: | Water Cooled |
|---|---|---|---|
| Refrigerant: | R404a, R22 | Voltage: | 380V/3P/50Hz, 220V/1P/60Hz |
| Use: | Cold Room, Blast Freezer, Cold Chain Logistic, Pharacy, Refrigeration | Evaporating Temperature: | 10~-15℃， -15~-35℃， -30~-50℃ |
| Condensing Temperature: | 35℃ | Compressor Type: | Screw Type |
| Highlight: | refrigeration condenser unit,danfoss condensing unit |
||
Product Description
Water Cooled Copeland Condensing Unit , Freezer Condensing Unit
equipped with mechanical capacity control and an extensive application limits diagram, the semi-hermetic compact screw compressors are suitable for use in industrial liquid chillers and heat pumps. The built-in oil-separating system facilitates simple system construction and fast installation.
Feature
1. screw compressor
2. With full range, air cooled & water cooled.
3. Multi stage energy-controlling system
4. All the accessories are world famous brand, which with reliable quality.
5. Testing condition: ambient temperature 35oc, condensing temperature 50oc
6. Wide application, suitable for different refrigerant.
7. Optional configuration is acceptable.
8. CE approved.
Low temperature screw type parallel unit
Refrigerating capacity and power are set based on condensing temperature 35℃, used for evaporation
condensation
|
(OBBL) Rack model |
2-100J |
2-150J |
2-200J |
||
|
Evaporating temperature (℃) |
-30℃～-60℃ |
||||
|
Refrigerant |
R404A |
||||
|
Power |
380V/50HZ |
||||
|
Fusheng Compressor |
Type |
Semi hermatic screw type (double screw) |
|||
|
SRL Model |
220E |
330E |
450E |
||
|
Qty |
2 |
2 |
2 |
||
|
Refrigerating capacity & power |
Te. -40℃ |
Qo(W) |
136660 |
198820 |
269780 |
|
Pe(KW) |
77.96 |
113.4 |
153.9 |
||
|
Te. -50℃ |
Qo(W) |
87180 |
126840 |
172120 |
|
|
Pe(KW) |
64.52 |
93.86 |
127.36 |
||
|
Te. -60℃ |
Qo(W) |
52340 |
76160 |
103360 |
|
|
Pe(KW) |
54.94 |
79.94 |
108.44 |
||
|
Connector |
Air inlet(mm) |
133 |
133 |
159 |
|
|
Liquid outlet(mm) |
45 |
57 |
57 |
||
|
Air outlet(mm) |
89 |
89 |
108 |
||
|
Liquid inlet(mm) |
57 |
76 |
76 |
||
|
Overall Dimension |
L(mm) |
2600 |
2600 |
2600 |
|
|
W(mm) |
1400 |
1780 |
1950 |
||
|
H(mm) |
1811 |
1961 |
1997 |
||
|
(OBBL) Rack model |
3-150J |
3-225J |
3-300J |
|||
|
Evaporating temperature(℃) |
-30℃～-60℃ |
|||||
|
Refrigerant |
R404A |
|||||
|
Power |
380V/50HZ |
|||||
|
Compressor |
Type |
Semi hermetic screw type |
||||
|
SRL Model |
220E |
330E |
450E |
|||
|
Qty |
3 |
3 |
3 |
|||
|
Cooling capacity & Power |
Te. -40℃ |
Qo(W) |
204990 |
298230 |
404670 |
|
|
Pe(KW) |
116.94 |
170.1 |
230.85 |
|||
|
Te. -50℃ |
Qo(W) |
130770 |
190260 |
258180 |
||
|
Pe(KW) |
96.78 |
140.79 |
191.04 |
|||
|
Te. -60℃ |
Qo(W) |
78510 |
114240 |
155040 |
||
|
Pe(KW) |
82.41 |
119.91 |
162.66 |
|||
|
Connector |
Air inlet(mm) |
159 |
159 |
219 |
||
|
Liquid outlet(mm) |
57 |
76 |
76 |
|||
|
Air outlet(mm) |
89 |
108 |
133 |
|||
|
Liquid inlet(mm) |
76 |
76 |
89 |
|||
|
Overall dimension |
L(mm) |
3400 |
3400 |
3400 |
||
|
W(mm) |
1400 |
1780 |
1950 |
|||
|
H(mm) |
1811 |
1961 |
1997 |
|||
Low temperature screw type parallel unit
Refrigeration amount and power are set based on condensing temperature of 35℃, used for evaporation
condensation.
|
(OBBL) Rack model |
4-200J |
4-300J |
4-400J |
||
|
Evaporating temperature (℃) |
-30℃～-60℃ |
||||
|
Refrigerant |
R404A |
||||
|
Power |
380V/50HZ |
||||
|
Compressor |
Type |
Semi hermetic screw type |
|||
|
SRL Model |
220E |
330E |
450E |
||
|
Qty |
4 |
4 |
4 |
||
|
Cooling capacity & Power |
Te. -40℃ |
Qo(W) |
273320 |
397640 |
539560 |
|
Pe(KW) |
155.92 |
226.8 |
307.8 |
||
|
Te. -50℃ |
Qo(W) |
174360 |
253680 |
344240 |
|
|
Pe(KW) |
129.04 |
187.72 |
254.72 |
||
|
Te. -60℃ |
Qo(W) |
104680 |
152320 |
206720 |
|
|
Pe(KW) |
109.88 |
159.88 |
216.88 |
||
|
Connector |
Air inlet(mm) |
2*125 |
2*159 |
2*159 |
|
|
Liquid outlet (mm) |
76 |
76 |
76 |
||
|
Air outlet (mm) |
133 |
133 |
133 |
||
|
Liquid inlet (mm) |
89 |
89 |
89 |
||
|
Overall dimension |
L(mm) |
4200 |
4200 |
4200 |
|
|
W(mm) |
1400 |
1780 |
1950 |
||
|
H(mm) |
1811 |
1961 |
1997 |
||
