R404a Air Cooled Screw Chiller Tuna Fish -50 Centigrade Cooling

R404a Air Cooled Screw Chiller Tuna Fish -50 Centigrade Cooling

Product Details:

Place of Origin: China
Certification: ISO 9001:2008, CE, CCC, QS
Model Number: OBBL2-180L

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: nigotiation
Packaging Details: Plastic film + Plywood case
Delivery Time: 20 days
Supply Ability: 100 units per month
Get Best Price Contact Now

Detail Information

Compressor Brand: , Carlyle, Danfoss, Copeland, Bock, Hanbell, Fusheng, Etc. Cooling Type: Water Cooled
Refrigerant: R404a, R22 Voltage: 380V/3P/50Hz, 220V/1P/60Hz
Use: Cold Room, Blast Freezer, Cold Chain Logistic, Pharacy, Refrigeration Evaporating Temperature: 10~-15℃, -15~-35℃, -30~-50℃
Condensing Temperature: 35℃ Compressor Type: Screw Type
High Light:

compressor condensing unit


air cooled screw chillers

Product Description

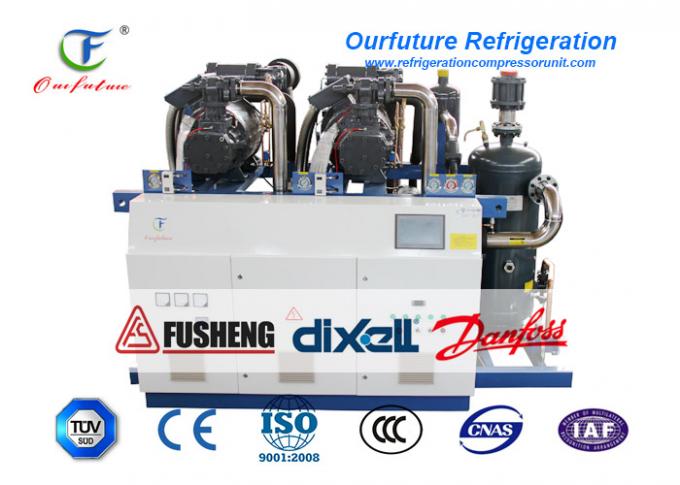

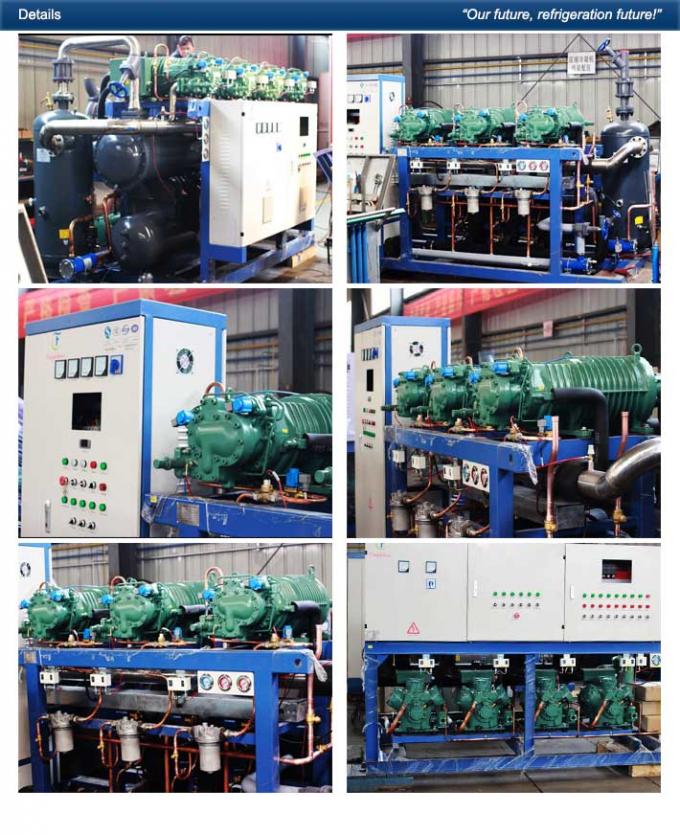

​R404a Tuna fish -50 centigrade cooling screw type parallel compressor rack

  • We produce our compressor racks with world famous components and the world lastest technology. Each compressor rack is standardly equipped with phase loss protection, reverse phase order protection, over voltage/lack voltage protection, oil pressure protection, high/low pressure protection, motor over load protection, etc. This would enable our compressor racks to avoid frequently startup/off and provide a stable and reliable performance to end user.
  • Components such as compressor, reservoir, gas-liquid separator, oil separator, economizer, intake manifold, fluid supply manifold, electrical control equipment are all centralized, making sure every inch of the space is fully used.
  • The unit has a compact structure, the space saved during assembly can provide more space for commercial use, benefiting the end user with extra profit.

Ourfuture Refrigeration provide reciprocating type parallel compressor racks with the best quality  brand compressor. This series has large capacity, heavy duty with high efficiency. The unit comes with full component, control system and safety devices.
This series is widely use for commercial refrigerated food display cabinets, kitchen equipment, medium/low temperature freezer/cold room, vessel refrigeration equipment, large low temperature processing room, low temperature logistic center, etc.

  • New generation of air-cooled condensing units with semi-hermetic ECOLINE compressors,
  • Compact size for container logistic,
  • Siemens brand contactor,
  • Danfoss pressure control,
  • PLC touch screen or microcontroller solution,
  • Heavy duty steel square tube frame with antirust painting,
  • Copper/aluminum condensing coils with protection filter,
  • Electrical board with microprocessor,
  • Ply wood crate package.
  • 380V/3P/50Hz or 240V/3P/60Hz
Low Temperature Screw Type Parallel Compressor Unit Standard Configuration
1 Parallel unit components 4 Oil line components
  Strong metal frame   Oil outlet with filter barrel, with filter core
  Lifting ring   Oil line ball valve
  Cushion   Oil line solenoid valve
2 Reservoir components   Oil line sight glass
  28 bar safety valve   Electrical oil flow switch
  Inlet/outlet stop valve 5 Single compressor components
  Reservoir sight glass   Suction/discharge stop valve
  Pipeline sight glass   Discharge one direction stop valve
  Filter drier barrel, with filter core   Compressor shockwave cushion
  Stop valve for filter barrel outlet   Suction filter barrel, with filter core
3 Discharge components   1st degree spray cooling system
  External oil separator(with sight glass)   Oil sight glass
  oil heater 6 Economizer components
  Oil separator outlet stop valve   Economizer
  Oil temperature controller   ECO expansion valve, ECO solenoid valve, ECO sight glass, ECO stop valve.
  Oil level controller

R404a Air Cooled Screw Chiller Tuna Fish -50 Centigrade Cooling 0

R404a Air Cooled Screw Chiller Tuna Fish -50 Centigrade Cooling 1
