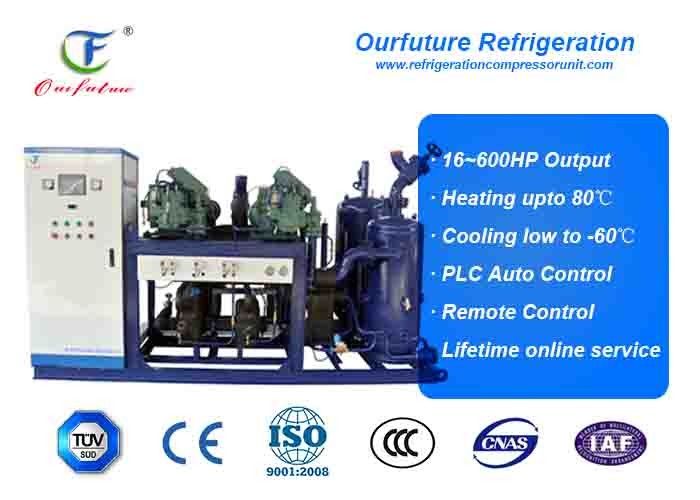

R404a brand screw type parallel compressor racks for fruit processing
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001:2008, CE, CCC, QS |
| Model Number: | OBBL2-180L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | nigotiation |
| Packaging Details: | Plastic film + Plywood case |
| Delivery Time: | 20 days |
| Supply Ability: | 100 units per month |
|
Detail Information |
|||
| Compressor Brand: | , Carlyle, Danfoss, Copeland, Bock, Hanbell, Fusheng, Etc. | Cooling Type: | Water Cooled |
|---|---|---|---|
| Refrigerant: | R404a, R22 | Voltage: | 380V/3P/50Hz, 220V/1P/60Hz |
| Use: | Cold Room, Blast Freezer, Cold Chain Logistic, Pharacy, Refrigeration | Evaporating Temperature: | 10~-15℃， -15~-35℃， -30~-50℃ |
| Condensing Temperature: | 35℃ | Compressor Type: | Screw Type |
| Highlight: | refrigeration racks,parallel compressor system |
||
Product Description
Water Cooled Copeland Condensing Unit , Freezer Condensing Unit
Wide Range of Options
|
Compressor Unit |
Refrigeration Capacity |
Evaporating temperature |
|
Piston type single-stage parallel unit |
20HP~350HP |
7.5℃~-45℃ |
|
Piston type Two-stage parallel unit |
16HP~180HP |
-25℃~-65℃ |
|
Screw type single stage parallel unit |
80HP~600HP |
5℃~-45℃ |
|
Screw type double-stage parallel unit |
100HP~600HP |
-30℃~-65℃ |
equipped with mechanical capacity control and an extensive application limits diagram, the semi-hermetic compact screw compressors are suitable for use in industrial liquid chillers and heat pumps. The built-in oil-separating system facilitates simple system construction and fast installation.
Feature
1. screw compressor
2. With full range, air cooled & water cooled.
3. Multi stage energy-controlling system
4. All the accessories are world famous brand, which with reliable quality.
5. Testing condition: ambient temperature 35oc, condensing temperature 50oc
6. Wide application, suitable for different refrigerant.
7. Optional configuration is acceptable.
8. CE approved.
| No. | Cold Room | Temperature (℃) |
Relative Humidity (%) |
Storage Product |
| 1 | Cooling room | 0 | — | Meat, egg, etc. |
| 2 | freeze room | -18~-23 | — | Meat, poultry, rabbit, frozen egg, vegetable, etc. |
| -23~-30 | — | Fish, shrimp, etc. | ||
| 3 | Chilled product cold storage | 0 | 85~90 | Cooled meat, poultry, etc. |
| -2~0 | 80~85 | Fresh egg | ||
| 0~+2 | 85~90 | Apple, pear, etc. | ||
| -1~+1 | 90~95 | Chinese cabbiage, Garlic sprouts, onion, spinach, parsley, carrots, cabbage, celery, lettuce, etc. | ||
| +2~+4 | 85~90 | Potatoes, oranges, persimmons, etc. | ||
| +7~+13 | 85~95 | Bell pepper, beans, cucumber, tomato, pineapple, oranges, etc. | ||
| +11~+16 | 85~90 | Bananas | ||
| 4 | Frozen product cold storage | -15~-20 | 85~90 | Frozen meat, poultry, rabbits and byproducts, frozen eggs, frozen vegetables, popsicles and other |
| -18~-23 | 90~95 | Frozen fish and shrimps | ||
| 5 | Ice storage | -4~-6 | — | Ice block |
