VFD Nh3 Co2 Refrigeration System For -55 Centigrade Freezer Room
Product Details:
| Place of Origin: | China |
| Brand Name: | Kobelco |
| Certification: | CE, ISO |
| Model Number: | R404a/CO2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | USD 50000 ~ 400000 per unit |
| Packaging Details: | pallet with plastic film |
| Delivery Time: | 3~4 weeks |
| Payment Terms: | T/T, L/C |
|
Detail Information |
|||
| Cooling Capacity: | R717/CO2, R404a/CO2 | Temperature: | Within -65 Deg C |
|---|---|---|---|
| Gas: | 40～500KW | System Type: | CO2 Brine System |
| Highlight: | Refrigeration compressor rack,refrigeration rack systems |
||
Product Description
NH3/CO2 VFD Kobelco screw 2-stage compressor rack for -55 centigrade freezer room
| Compressor Qty | 1 |
| Compressor Stage | 2-stage |
| Compressor Brand | Kobelco |
| Available Refrigerant | R717, R404a |
| Temperature | Fast frozen |
| Character | CO2 as secondary refrigerant |
| Cooling Capacity | 40~500KW |
| Evaporating Temp. | above -65 centigrade |
| Compressor Type | Screw compressor |

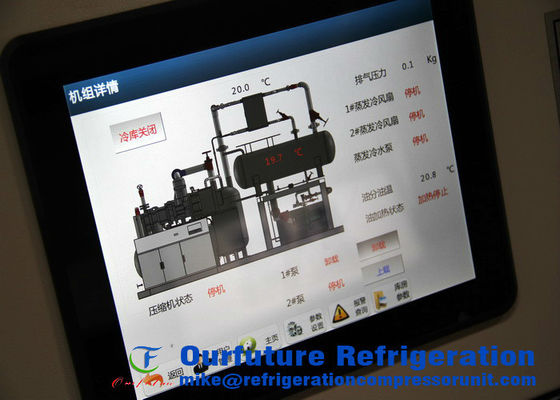

Equipped with large capacity heat/cold exchanger, can super-cold liquid and also effectively prevent liquid returning to compressor. Pump station liquid supply, it can be used for long distance liquid supply, simplify the system while offering a clear and easy control. Equipped with inverter, it settles the problems of requiring very large start-up power supply and start interval more than 10 mins. The Inverter type unit can be on/off at any time. It can reduce the impact to the power grid by reducing the installed power.Use environmental secondary refrigerant CO2, ODP=0, GWP=1Refrigerant: R404a, R717.Refrigeration capacity: 40KW~500KW.Application: Super low temperature cold storage, super low temperature brine system, fast frozen, etc. The evaporator side uses CO2 as secondary refrigerant. It’s non-toxic, anti=flaming and has large latent heat of evaporation. Advanced user interface and control system with 10 inch PLC color touch screen display. With multi-touch function you can easily swap, enlarge just like using your ipad. It also support remote monitoring include data checking, modifying and downloading, it brings convenient to user.
