Fusheng High Temperature Parallel Compressor for Cold Chamber

China Fusheng High Temperature Parallel Compressor for Cold Chamber supplier

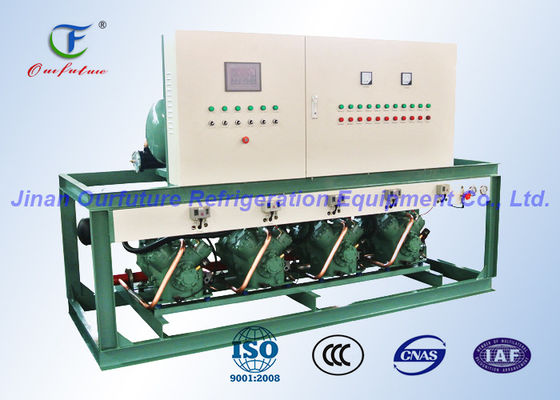

Large Image :  Fusheng High Temperature Parallel Compressor for Cold Chamber

Product Details:

Place of Origin: China
Brand Name: Ourfuture
Certification: CE, 3C, ISO9001:2008
Model Number: OBBL4-20M

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: plastic film with plywood case
Delivery Time: 10~15 days
Supply Ability: 60 units per months on average
Contact Now
Detailed Product Description
Compressor Brand: Bitzer, Carlyle, Danfoss, Copeland, Bock, Hanbell, Fusheng, Etc. Refrigerant: R404a, R22
Voltage: 380V/3P/50Hz, 220V/1P/60Hz Evaporating Temperature: 10~-15℃, -15~-35℃, -30~-50℃
Condensing Temperature: 35℃, 40℃ Use: Cold Room, Blast Freezer, Cold Chain Logistic, Pharacy, Refrigeration

Fusheng High Temperature Parallel Compressor for Cold Chamber



Ourfuture compressor rack include:

Electrical switchgear, Screw type compressor, Exhaust temperature protection, Motor protection, Oil

 level switch, Liquid spray connector, Suction stop valve, Exhaust stop valve, External oil separator,

 Horizontal rotary valve, Oil heater, Oil temperature controller, Photoelectric level switch, Oil filter,

Oil circuit ball valve, Oil line sight glass, Oil line solenoid valve, Liquid spray ball valve, Liquid spray

solenoid valve, Liquid spray filter, Liquid spray sight glass, Liquid feeding sight glass, High/low pressure

 controller, Pressure sensor, reservoir, Safety valve, Liquid drop off valve, Liquid outlet stop valve,

Total feed valve, Total suction stop valve, Total exhaust non-return stop valve, Liquid filter barrel, Suction filter barrel, Oil filter barrel, Angle valve, Exhaust pipe,

Oil high/low pressure gauge, Pressure gauge connection hose, Oil filter core, Liquid feeding filter core,

Suction filter core, Pressure gauge board, etc.



Wide Range of Options

Compressor Unit

Refrigeration Capacity

Evaporating temperature

Piston type single-stage parallel unit

20HP~350HP

7.5℃~-45℃

Piston type Two-stage parallel unit

16HP~180HP

-25℃~-65℃

Screw type single stage parallel unit

80HP~600HP

5℃~-45℃

Screw type double-stage parallel unit

100HP~600HP

-30℃~-65℃

Adopted to multiple refrigerant R404a, R507, R407C, R22.

Stable & Reliable Performance

The units are equipped with world famous brand high quality compressor and components, following the

latest design, the perfect combination provides a safe and reliable system.



The unit comes standard with a controller that can effectively avoid turning on/off the motor frequently

 as well as safety protection modules including the following: Phase loss protector, Inverted sequence,

 overvoltage protector, undervoltage protector, oil pressure, high pressure, low pressure, motor overload.



High efficiency oil separating system. When power is on, there is no need to add lubricating oil, the

standard provided oil heater (for screw unit), oil temperature controller (for screw unit) and oil level

switch (for screw unit), etc. can protect the function.

The PLC controller is a standard provided component. It can automatically decide the compressor

quantity to be used based on actual need of refrigerant capacity, average the running time between

each compressor, save the power. All of these will guarantee an over 30% longer usage than single

compressor condensing unit.



It has a unique low environment condensing pressure monitor system which guarantees a stable

functioning when there is a low ambient temperature, lack of oil feeding or oil flow warnin



High efficiency gas liquid separator is used, with a unique pipeline design, it can effectively minimize the

 possibility of liquid strike.



The “Pressure Vessel Certificate” approved reservoir is provided as well as the safety relief valve.

Fault isolation device is served so that when a certain compressor breaks down, the rest of the unit can

keep running appropriately, making sure that client has enough time for repair and replacement.



High efficiency & energy saving



Because of a huge demand difference between seasons for refrigerating capacity, the unit must have a

high level control for capacity, so that the unit can keep running under high efficiency mode.

The average parallel unit efficiency, according to different refrigeration system is 30% higher than single

 compressor unit.



Using multiple compressor parallel units can provide a multiple energy level control, the refrigeration

output can be dynamically allocated more smoothly according to actual situation.



With high efficiency oil separator, only a small amount of lubricating oil enters the system, this largely

 brings up the heat exchanging efficiency.



The PLC controller monitors running compressors quantity, it maintains a maximum use rate even when

only parts of the compressors are functioning.



PLC controller can be set with the best running curve (maximum & minimum power comsuption), to same

 as much electricity as possible.



With “modularized design” the risk during construction can be largely reduced, construction period can

be shortened, improve the product quality controllability.

Compact & Nimble Structure



Components such as compressor, reservoir, gas-liquid separator, oil separator, economizer, intake manifold, fluid supply manifold, electrical control

equipment are all centralized, making sure every inch of the space is fully used.



The unit has a compact structure, the space saved during assembly can provide more space for

 commercial use, benefiting the end user with extra profit.

Easy operation & convenience



With PLC safety auto control, client can program with touch screen, the graphical control interface can

intently show the running status, recording data, parameter settings and false alarming, easy for

operation.



The reserved remote communication interface can help customer to monitor remotely.



Thanks to the print output interface, customer can print the running history data of the unit and the

system.

Fusheng High Temperature Parallel Compressor for Cold ChamberFusheng High Temperature Parallel Compressor for Cold ChamberFusheng High Temperature Parallel Compressor for Cold ChamberFusheng High Temperature Parallel Compressor for Cold ChamberFusheng High Temperature Parallel Compressor for Cold ChamberFusheng High Temperature Parallel Compressor for Cold Chamber
