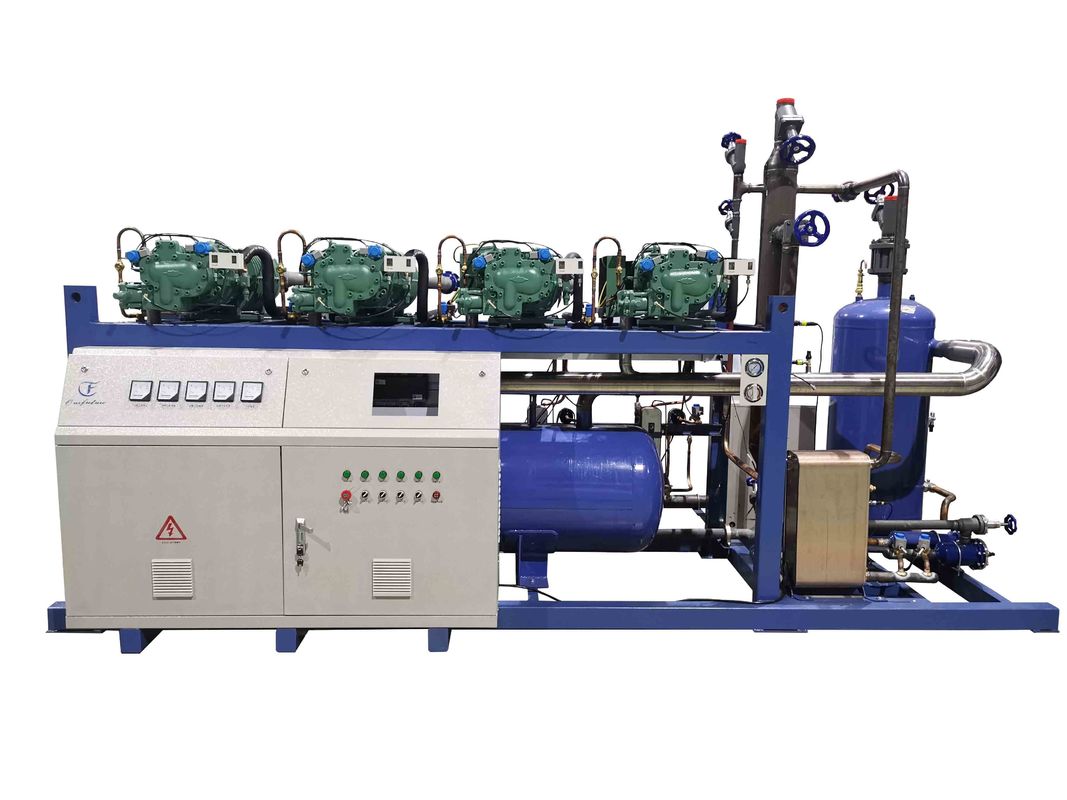

High-Efficiency And Energy-Saving Multi-Compressor Rack For Cold Storage Customized Programming-Enhanced
Product Details:
| Place of Origin: | Jinan China |
| Brand Name: | Ourfuture |
| Certification: | CE, 3C |
| Model Number: | OBBL2-250L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | USD 20,000~40,000 per unit |
| Packaging Details: | Plywood case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 units per month |
|
Detail Information |
|||
| Compressor Brand: | Bitzer, Frascold, Fusheng, Hanbell | Refrigerant: | R404a, R507a, R448a |
|---|---|---|---|
| Package: | Plywood Case | Temp Range: | Low Temp Storage And Freezer |
| Model: | HSN8571-125 | Quantity: | 1-6 |
| Highlight: | Customized Programming-Enhanced Multi-Compressor Rack,Multi-Compressor Rack High-Efficiency |
||
Product Description
High-Efficiency And Energy-Saving Multi-Compressor Rack For Cold Storage Customized Programming-Enhanced
Features:
1. Compact and agile structure: the compressor, reservoir, gas-liquid separator, oil separator, economizer, return manifold, supply manifold, and electrical control equipment are all concentrated together, fully saving the area of the computer room; The compact structure of the unit and the reduction of installation space can provide users with larger commercial space, further creating value for end users.
2. Simple and convenient operation: PLC safety automatic control, equipped with touch screen Chinese menu, graphical control interface for easy operation, intuitive display of equipment operation status, data recording, parameter setting, and fault alarm; Reserved remote communication interface for convenient remote monitoring by customers; Equipped with a print output port, capable of recording printer groups and system operation history.
Product parameters:
| Rack Model | OBBL2-250L | ||
| Power Supply | 380~420v/3/50Hz | ||
| Refrigerant | R404a | ||
| Compressor | Type | Semi hermatic screw type | |
| Brand | Bitzer | ||
| Model | HSN8571-125 | ||
| Qty | 2 | ||
| Cooling Capacity | Evap. Temp.-27℃ | Qo(KW) | 323.2 |
| Pe(KW) | 172.6 | ||
| COP | 1.87 | ||
| Evap. Temp.-42℃ | Qo(KW) | 174 | |
| Pe(KW) | 150 | ||
| COP | 1.16 | ||
| Condensing Temperature | 35℃ | ||
