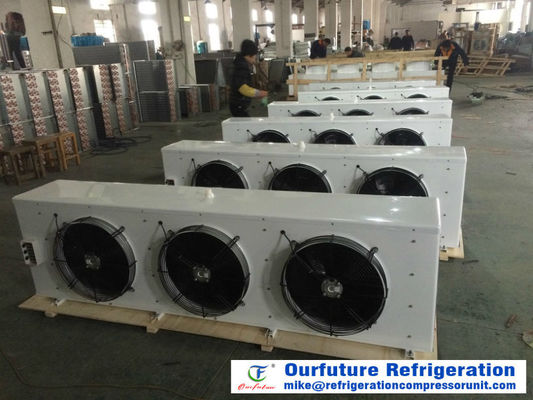

High Efficiency Room Cooling Unit Cold Storage Copper Tube Aluminum Fin Evaporator
Product Details:
| Place of Origin: | China |
| Brand Name: | Ourfuture |
| Certification: | CE, ISO9001:2008, 3C |
| Model Number: | IVF180-0404E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | USD 1000 Per Unit |
| Packaging Details: | Plastic film with plywood case |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |
|
Detail Information |
|||
| Fan Brand: | Ebmpapst, Ziehl;Abegg, Dunli, Etc. | Voltage: | 380/3Phase/50Hz, 460V/1Phase/60Hz |
|---|---|---|---|
| Use: | Cold Room, Refrigeration, Supermarket, Pharmacy, Meat Produce | Key Components: | Danfoss, Siemens, Ebmpapst |
| Refrigerant: | R404a, R507a, R407c, R22, CO2 | ||
| High Light: | walk in cooler condensing unit,air cooling units |
||
Product Description
Design of heat exchanger
Using the mature European design software, according to the actual demand accurate design of heat exchanger, can design the latest refrigerant C02, R410a, R507a and special low temperature cold agent etc.
Unit cooler apperance
Shape with flexible and changeable, drawing, blowing, forward air flow, air flow up air flow down, precision meet the actual needs of different occasions, the cold quantity to the location of the actual needs, improve efficiency.
Cooler coil
Tube pattern aligned 50*50mm, special copper tubes OD15.88mm. Also use stainless steel tube aluminium fin spacing 4, 7, 10, 12, 14 and 16mm. Fin and copper interface is more sufficient, thermal resistance smaller, more efficient, can also provide copper fin, stainless steel fin and some variety of anti-corrosion treatment scheme.
Casing
Sizes 400-450: AlMg3, poder coated RAL9010, fan 500-630-800 used galvanized steel powder coated RAL 9010.
Drip tray
AIMg3, powder coated RAL9010, for easy cleaning the drip tray can be folded down or removed. Perfect consensation water drain due to optimal drain design Drain nozzle mounted at an angle below 45 degree.
Fans
Low noise axial fans, with maintenance free motors in protection class IP54. Internal motor protection with thermo contacts. With precise design, a leading solar or lunar halo forming mould processing, air volume is larger and more efficient, longer air throw.
Heater
The international famous brand, the material of heating tube of SUS304 stainless steel, surface heat load is less than 2.0 W/cm3, longer life.
| Model | Diameter of fan | No. of fans | Capacity R404A SC2 | Capacity R404A SC3 | Exchange surface | Air throw |
| kW | kW | ㎡ | m | |||
| IVF140-0704E | 400 | 1 | 2.8 | 2.1 | 17 | 11 |
| IVF140-0706E | 1 | 4.1 | 3.1 | 25 | 10 | |
| IVF240-0704E | 2 | 6.1 | 4.6 | 34 | 12 | |
| IVF240-0706E | 2 | 8.3 | 6.3 | 51 | 11 | |
| IVF340-0704E | 3 | 9.3 | 7.1 | 51 | 13 | |
| IVF340-0706E | 3 | 12.5 | 9.5 | 76 | 12 | |
| IVF440-0704E | 4 | 12.2 | 9.3 | 68 | 14 | |
| IVF440-0706E | 4 | 16.7 | 12.6 | 102 | 13 | |
| IVF145-0704E | 450 | 1 | 5.8 | 4.8 | 30 | 15 |
| IVF145-0706E | 1 | 8.5 | 6.6 | 46 | 14 | |
| IVF245-0704E | 2 | 12.5 | 10.1 | 61 | 17 | |
| IVF245-0706E | 2 | 17.3 | 13.5 | 91 | 16 | |
| IVF345-0704E | 3 | 17.5 | 14.4 | 91 | 18 | |
| IVF345-0706E | 3 | 26.0 | 20.4 | 137 | 17 | |
| IVF445-0704E | 4 | 25.7 | 20.4 | 122 | 20 | |
| IVF445-0706E | 4 | 35.1 | 27.7 | 183 | 19 | |
| IVF150-0704E | 500 | 1 | 7.4 | 5.9 | 36 | 20 |
| IVF150-0706E | 1 | 10.1 | 7.9 | 53 | 19 | |
| IVF250-0704E | 2 | 14.9 | 11.9 | 71 | 22 | |
| IVF250-0706E | 2 | 20.4 | 15.9 | 107 | 21 | |
| IVF350-0704E | 3 | 21.8 | 16.9 | 107 | 23 | |
| IVF350-0706E | 3 | 30.2 | 23.6 | 160 | 22 | |
| IVF450-0704E | 4 | 29.2 | 23.4 | 142 | 24 | |
| IVF450-0706E | 4 | 39.8 | 31.6 | 213 | 23 | |
| IVF163-0704E | 630 | 1 | 15.4 | 12.9 | 81 | 33 |
| IVF163-0706E | 1 | 22.6 | 17.6 | 122 | 32 | |
| IVF263-0704E | 2 | 32.3 | 25.7 | 162 | 36 | |
| IVF263-0706E | 2 | 45.2 | 35.8 | 244 | 35 | |
| IVF363-0704E | 3 | 48.6 | 38.8 | 244 | 39 | |
| IVF363-0706E | 3 | 68.0 | 53.9 | 366 | 38 | |
| IVF463-0704E | 4 | 64.9 | 51.8 | 325 | 40 | |
| IVF463-0706E | 4 | 90.8 | 72.1 | 487 | 39 | |
| IVF180-0706E | 800 | 1 | 31.2 | 24.1 | 162 | 34 |
| IVF180-0708E | 1 | 37.3 | 29.5 | 217 | 32 | |
| IVF280-0706E | 2 | 49.6 | 49.6 | 325 | 37 | |
| IVF280-0708E | 2 | 74.9 | 59.4 | 433 | 35 | |
| IVF380-0706E | 3 | 94.2 | 73.3 | 487 | 39 | |
| IVF380-0708E | 3 | 111.7 | 88.1 | 650 | 37 |
