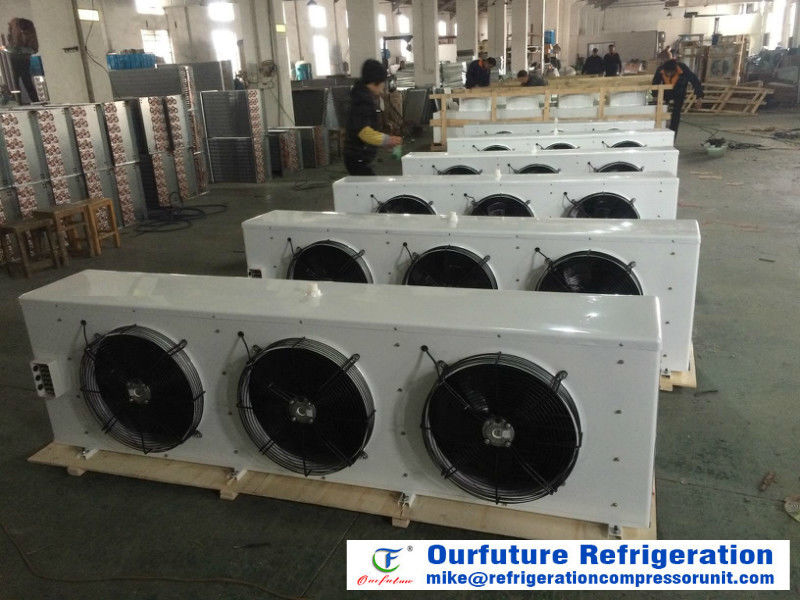

Freezer Tunnel Use Unit Cooler Evaporator For Freon , CO2 And Ammonia System
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001:2008, CE, CCC, QS |
| Model Number: | IVB350-0406E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | nigotiation |
| Packaging Details: | Plastic film + Plywood case |
| Delivery Time: | 20 days |
| Supply Ability: | 1000 units per month |
|
Detail Information |
|||
| Fan Brand: | Ebmpapst, Ziehl;Abegg, Dunli, Etc. | Defrost Type: | Water Flushing, Heating Tube Or Hot Gas Defrost |
|---|---|---|---|
| Refrigerant: | R404a, R507a, R407c, R22, CO2 | Voltage: | 380V/3P/50Hz, 220V/1P/60Hz |
| Use: | Cold Room, Refrigeration, Supermarket, Pharmacy, Meat Produce | ||
| Highlight: | cold room condensing unit,air cooling units |
||
Product Description
Ourfuture copper tube and aluminum fin Evaporator are equipped with high quality German brand fan, with the best matching fan blade and twin curve wind barrel, the effeciency of the evaporator can be maximized.
We use 99.9%+ copper material with inner grooved copper tube, the heat exchange surface is largely increased.
The pipeline design makes oil more easier to return, the less oil that stays in evaporator, the better heat exchange effeciency we have.
Our product are using 3003 aluminum casing, with outdoor use powder painting, with high temperature baken, the painted surface is solid, tough and rust resistant.
Design of heat exchanger are Using the mature European design software, according to the actual demand accurate design of heat exchanger, can design the latest refrigerant C02, R410a, R507a and special low temperature cold agent etc.
| Model | Diameter of fan | No. of fans | Capacity R507A SC2 | Capacity R507A SC3 | Exchange surface | Air throw |
| kW | kW | ㎡ | m | |||
| IVP140-0704E | 400 | 1 | 2.8 | 2.1 | 17 | 11 |
| IVP140-0706E | 1 | 4.1 | 3.1 | 25 | 10 | |
| IVP240-0704E | 2 | 6.1 | 4.6 | 34 | 12 | |
| IVP240-0706E | 2 | 8.3 | 6.3 | 51 | 11 | |
| IVP340-0704E | 3 | 9.3 | 7.1 | 51 | 13 | |
| IVP340-0706E | 3 | 12.5 | 9.5 | 76 | 12 | |
| IVP440-0704E | 4 | 12.2 | 9.3 | 68 | 14 | |
| IVP440-0706E | 4 | 16.7 | 12.6 | 102 | 13 | |
| IVP145-0704E | 450 | 1 | 5.8 | 4.8 | 30 | 15 |
| IVP145-0706E | 1 | 8.5 | 6.6 | 46 | 14 | |
| IVP245-0704E | 2 | 12.5 | 10.1 | 61 | 17 | |
| IVP245-0706E | 2 | 17.3 | 13.5 | 91 | 16 | |
| IVP345-0704E | 3 | 17.5 | 14.4 | 91 | 18 | |
| IVP345-0706E | 3 | 26.0 | 20.4 | 137 | 17 | |
| IVP445-0704E | 4 | 25.7 | 20.4 | 122 | 20 | |
| IVP445-0706E | 4 | 35.1 | 27.7 | 183 | 19 | |
| IVP150-0704E | 500 | 1 | 7.4 | 5.9 | 36 | 20 |
| IVP150-0706E | 1 | 10.1 | 7.9 | 53 | 19 | |
| IVP250-0704E | 2 | 14.9 | 11.9 | 71 | 22 | |
| IVP250-0706E | 2 | 20.4 | 15.9 | 107 | 21 | |
| IVP350-0704E | 3 | 21.8 | 16.9 | 107 | 23 | |
| IVP350-0706E | 3 | 30.2 | 23.6 | 160 | 22 | |
| IVP450-0704E | 4 | 29.2 | 23.4 | 142 | 24 | |
| IVP450-0706E | 4 | 39.8 | 31.6 | 213 | 23 | |
| IVP163-0704E | 630 | 1 | 15.4 | 12.9 | 81 | 33 |
| IVP163-0706E | 1 | 22.6 | 17.6 | 122 | 32 | |
| IVP263-0704E | 2 | 32.3 | 25.7 | 162 | 36 | |
| IVP263-0706E | 2 | 45.2 | 35.8 | 244 | 35 | |
| IVP363-0704E | 3 | 48.6 | 38.8 | 244 | 39 | |
| IVP363-0706E | 3 | 68.0 | 53.9 | 366 | 38 | |
| IVP463-0704E | 4 | 64.9 | 51.8 | 325 | 40 | |
| IVP463-0706E | 4 | 90.8 | 72.1 | 487 | 39 | |
| IVP180-0706E | 800 | 1 | 31.2 | 24.1 | 162 | 34 |
| IVP180-0708E | 1 | 37.3 | 29.5 | 217 | 32 | |
| IVP280-0706E | 2 | 49.6 | 49.6 | 325 | 37 | |
| IVP280-0708E | 2 | 74.9 | 59.4 | 433 | 35 | |
| IVP380-0706E | 3 | 94.2 | 73.3 | 487 | 39 | |
| IVP380-0708E | 3 | 111.7 | 88.1 | 650 | 37 |
