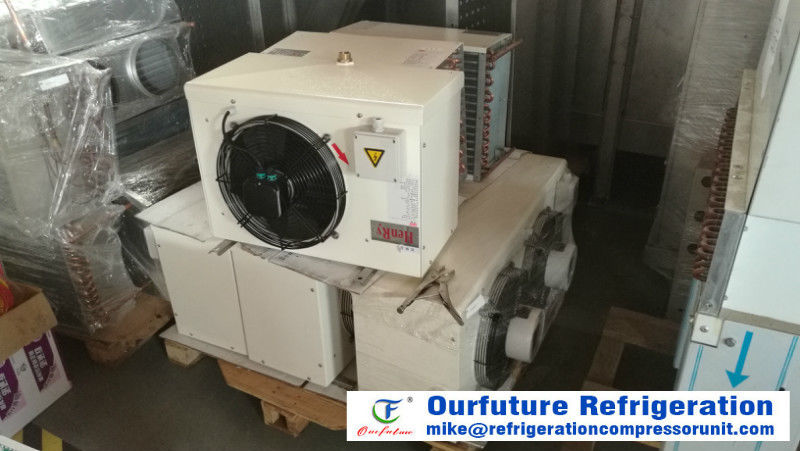

Anti - Corrosion CO2 Evaporator For Freezer Tunnel And Other Freezer System

Anti - Corrosion CO2 Evaporator For Freezer Tunnel And Other Freezer System

Product Details:

Place of Origin: China
Certification: ISO 9001:2008, CE, CCC, QS
Model Number: IVC350-1006

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: nigotiation
Packaging Details: Plastic film + Plywood case
Delivery Time: 20 days
Supply Ability: 1000 units per month
Get Best Price Contact Now

Detail Information

Fan Brand: Ebmpapst, Ziehl;Abegg, Dunli, Etc. Defrost Type: Water Flush, Hot Gas Defrost, Electrical Heater
Refrigerant: R404a, R507a, R407c, R22, CO2 Voltage: 380V/3P/50Hz, 460V/1P/60Hz
Use: Cold Room, Blast Freezer, Cold Chain Logistic, Pharacy, Refrigeration
High Light:

walk in cooler condensing unit

,

air cooling units

Product Description

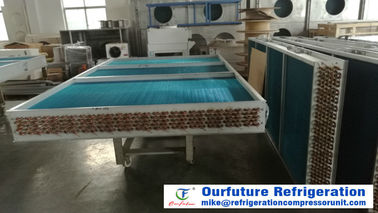

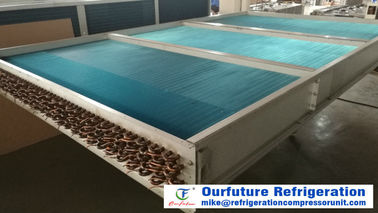

Cooler coil
Tube pattern aligned 50*50mm, special copper tubes OD15.88mm. Also use stainless steel tube aluminium fin spacing 4, 7, 10, 12, 14 and 16mm. Fin and copper interface is more sufficient, thermal resistance smaller, more efficient, can also provide copper fin, stainless steel fin and some variety of anti-corrosion treatment scheme.

Casing
Sizes 400-450: AlMg3, poder coated RAL9010, fan 500-630-800 used galvanized steel powder coated RAL 9010.

Drip tray
AIMg3, powder coated RAL9010, for easy cleaning the drip tray can be folded down or removed. Perfect consensation water drain due to optimal drain design Drain nozzle mounted at an angle below 45 degree.

Fans
Low noise axial fans, with maintenance free motors in protection class IP54. Internal motor protection with thermo contacts. With precise design, a leading solar or lunar halo forming mould processing, air volume is larger and more efficient, longer air throw.

Model Diameter of fan No. of fans Capacity R744 SC3 Capacity R744 SC4 Exchange surface Air throw
    kW kW m
IVC140-1004 400 1 2.5 2.1 12 11
IVC140-1006 1 3.5 2.9 18 11
IVC240-1004 2 5.2 4.3 24 12
IVC240-1006 2 7.1 5.8 37 12
IVC340-1004 3 7.8 6.4 37 13
IVC340-1006 3 10.7 8.8 55 13
IVC440-1004 4 10.5 8.6 49 14
IVC440-1006 4 14.3 11.7 73 14
IVC145-1006 450 1 7.3 6.0 33 16
IVC145-1008 1 9.0 7.4 44 15
IVC245-1006 2 14.9 12.2 66 18
IVC245-1008 2 18.0 14.9 88 17
IVC345-1006 3 22.2 18.3 99 19
IVC345-1008 3 27.9 22.9 132 18
IVC445-1006 4 29.6 24.4 132 21
IVC445-1008 4 36.0 29.6 176 20
IVC150-1006 500 1 8.8 7.2 38 19
IVC150-1008 1 10.4 8.5 51 18
IVC250-1006 2 17.5 14.4 77 21
IVC250-1008 2 21.4 17.6 103 20
IVC350-1006 3 26.3 21.6 115 22
IVC350-1008 3 32.0 26.3 154 21
IVC450-1006 4 34.9 28.8 153 23
IVC450-1008 4 42.6 35.2 205 22
IVC163-1006 630 1 20.1 16.5 88 33
IVC163-1008 1 24.7 20.2 117 32
IVC263-1006 2 41.0 33.7 176 36
IVC263-1008 2 50.4 41.4 235 35
IVC363-1006 3 61.3 50.5 264 39
IVC363-1008 3 76.9 63.3 352 38
IVC463-1006 4 84.6 69.7 352 40
IVC463-1008 4 104.2 85.9 469 39
IVC180-1006 800 1 26.2 21.5 117 35
IVC180-1008 1 31.9 26.2 156 34
IVC280-1006 2 52.9 43.5 235 38
IVC280-1008 2 64.3 52.9 313 37
IVC380-1006 3 81.2 67.0 352 40
IVC380-1008 3 98.6 81.3 469 39
