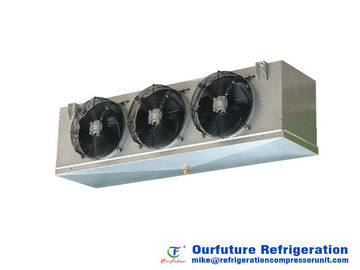

Low Noise Air Cooling Units With Water Spray Defrosting For Refrigerated Cooling
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001:2008, CE, CCC, QS |
| Model Number: | TAF250-0404E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | nigotiation |
| Packaging Details: | Plastic film + Plywood case |
| Delivery Time: | 20 days |
| Supply Ability: | 800 units per month |
|
Detail Information |
|||
| Fan Brand: | Ebmpapst, Ziehl;Abegg, Dunli, Etc. | Defrost Type: | Water Flush, Hot Gas Defrost, Electrical Heating Defrost |
|---|---|---|---|
| Refrigerant: | R404a, R507a, R407c, R22, CO2 | Voltage: | 380V/3P/50Hz, 220V/1P/60Hz |

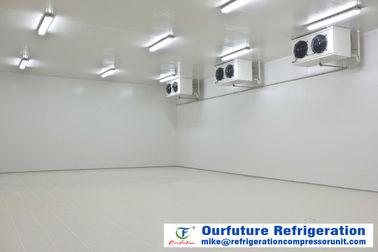

| Use: | Cold Room, Blast Freezer, Cold Chain Logistic, Pharacy, Refrigeration | ||
| Highlight: | cold room condensing unit,air cooling units |
||
Product Description
Ourfuture unit cooler has the following characteristic to provide excellent performance:
We use low noise fan, main tenance free fan-motors, with protection class F and IP54, compliant to DIN 40050. Standard motors are suitable for temperatures from -40 deg C to 45 deg C, however motors with other temperature requirements are available on request. Standard motors are 2 speed and capacities and air flow shown in tables are at high speed(delta wired). Standard air discharge is horizontal, draw through, yet other arrangements are possible.
The integral thermal contact(termistors) must be used as motor protection. We reserve the right to use different fan manufactueres and technical motor data may vary. Power consumption may also vary at different operating temperatures and due to external pressure drop. For corresponding electrical data please refer to fan/motor labels on units.
Our noise pressure levels shown in tables are calculated in accordance with EN 13487
For defrosting we can provide defrosting by water spray, electrical defrosting or hot gas defrosting.
| Model | Diameter of fan | No. of fans | Capacity R404A SC5 | Air throw | Capacity R404A SC5 | Air throw | Exchange surface |
| kW | m | kW | ㎡ | ||||
| BVF180-V110 | 800 | 1 | 25.2 | 43 | 24.4 | 40 | 160 |
| BVF180-V212 | 1 | 29.2 | 39 | 28.6 | 38 | 211 | |
| BVF280-V110 | 2H | 50.4 | 45 | 48.8 | 42 | 321 | |
| BVF280-V212 | 2H | 58.4 | 41 | 57.3 | 40 | 421 | |
| BVF280-V110 | 2V | 51.2 | 45 | 49.5 | 42 | 321 | |
| BVF280-V212 | 2V | 56.2 | 41 | 55.3 | 40 | 321 | |
| BVF480-V110 | 4 | 102.2 | 47 | 98.9 | 44 | 642 | |
| BVF480-V212 | 4 | 112.3 | 43 | 110.5 | 42 | 842 | |
| BAF180-V110 | 800 | 1 | 25.2 | 22 | 24.4 | 21 | 160 |
| BAF180-V212 | 1 | 29.2 | 20 | 28.6 | 19 | 211 | |
| BAF280-V110 | 2H | 50.4 | 23 | 48.8 | 22 | 321 | |
| BAF280-V212 | 2H | 58.4 | 21 | 57.3 | 20 | 421 | |
| BAF280-V110 | 2V | 51.2 | 23 | 49.5 | 22 | 321 | |
| BAF280-V212 | 2V | 56.2 | 21 | 55.3 | 20 | 321 | |
| BAF480-V110 | 4 | 102.2 | 25 | 98.9 | 24 | 642 | |
| BAF480-V212 | 4 | 112.3 | 23 | 110.5 | 22 | 842 |
