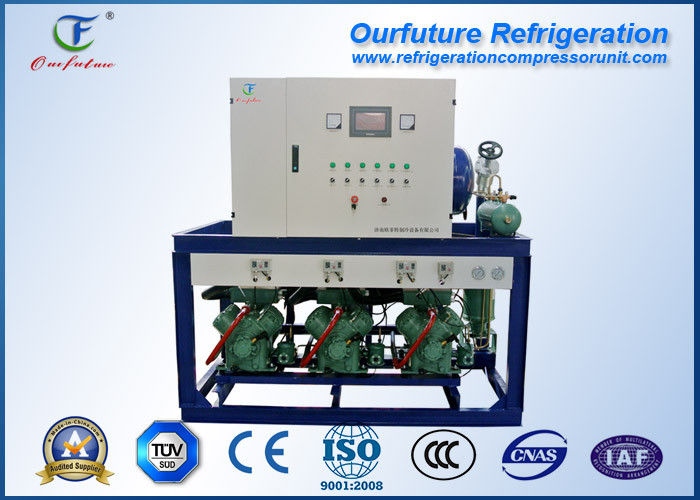

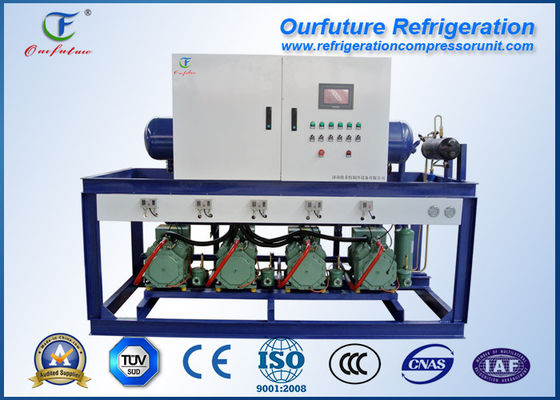

Beef refrigeration R404a brand screw type parallel compressor racks
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001:2008, CE, CCC, QS |
| Model Number: | OBBL2-180L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | nigotiation |
| Packaging Details: | Plastic film + Plywood case |
| Delivery Time: | 20 days |
| Supply Ability: | 100 units per month |
|
Detail Information |
|||
| Compressor Brand: | , Carlyle, Danfoss, Copeland, Bock, Hanbell, Fusheng, Etc. | Cooling Type: | Water Cooled |
|---|---|---|---|
| Refrigerant: | R404a, R22 | Voltage: | 380V/3P/50Hz, 220V/1P/60Hz |
| Use: | Cold Room, Blast Freezer, Cold Chain Logistic, Pharacy, Refrigeration | Evaporating Temperature: | 10~-15℃， -15~-35℃， -30~-50℃ |
| Condensing Temperature: | 35℃ | Compressor Type: | Screw Type |
| Highlight: | commercial water chiller,industrial water chiller units |
||
Product Description
- Our compressor racks are widely used in fruit fresh keeping, vegetable storage and production, seed storage, etc. We hope to work with more and more refrigeration contractor to provide the best refrigeratioin solution to the world.
- We produce our compressor racks with world famous components and the world lastest technology. Each compressor rack is standardly equipped with phase loss protection, reverse phase order protection, over voltage/lack voltage protection, oil pressure protection, high/low pressure protection, motor over load protection, etc. This would enable our compressor racks to avoid frequently startup/off and provide a stable and reliable performance to end user.
- We have hight effciency oil separation system, when the unit is on, there's no need to use lubracation, the standard oil temperature heater , oil temperature controller and oil level controller can make sure a perfect running.
- Each compressor rack is equipped with PLC controller, it can automatically decide how many compressors to be used according to the actual need, even the running time between all compressors, so that the electricity can be saved, also the compressors can have 30% more use life compared with single compressor condensing unit.
| High Temperature Reciprocating Type Parallel Compressor Unit Standard Configuration | |||
| 1 | Parallel unit components | 7 | Gas-liquid separator |
| Strong metal frame | |||

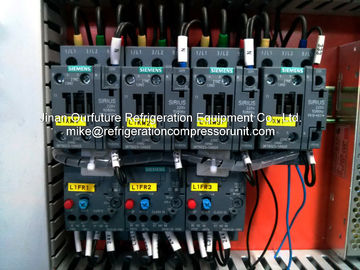

| Lifting ring | 8 | Control & Protection | |
| Cushion | Compressor high/low pressure controller | ||
| 2 | Reservoir components | Electrical over current protector | |
| 28 bar safety valve | Low pressure sensor | ||
| Inlet/outlet stop valve | Separate breaker and heater protector | ||
| Reservoir sight glass | PLC control with color touch screen | ||
| Pipeline sight glass | |||
| Filter drier barrel, with filter core | 9 | Liquid feeding manifold and return manifold components | |
| Stop valve for filter barrel outlet | Quantity follow catalog | ||
| 3 | Discharge components | Manifold uses hard tube | |
| Oil separator | |||
| Oil separator outlet stop valve | 10 | Other | |
| Shock absorption tube | Compressor pressure gauge | ||
| Prepair valves are mounted on each manifold | |||
| 4 | Oil line components | Insulation materials for suction pile, subcooler and cooling tube | |
| Reservoir(with oil sight glass) | Compressor suction stop valve | ||
| Reservoir inlet/outlet stop valve | |||
| Oil single direction valve | 11 | Optional configures | |
| Oil line outlet filter | Refrigerant R22, R404a | ||
| Oil line ball valve | Vertical or horizontal reservoir | ||
| Oil level controller | Liquid feeding manifold and return manifold components | ||
| 5 | Single compressor components | Cooling type: air cooled, water cooled, evaporative cooling | |
| Suction/discharge stop valve | Other brand compressor and valves | ||
| Compressor shockwave cushion | Electrical or manual oil level controller | ||
| Suction filter barrel, with filter core | |||
| Oil sight glass | 12 | Other components | |
| Oil pressure controller(for oil pump fabrication) | Compressor exhaust muffler | ||
| Crankcase heater | High pressure sensor | ||
| Compressor fan | Heat recovery device | ||
| Compressor spray cooling | Hot gas defrost fuction | ||
| Refrigeration oil | |||
